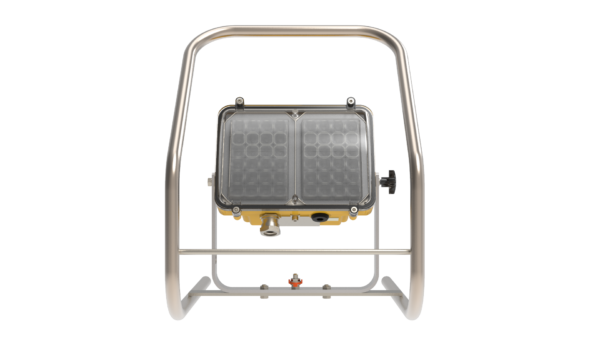

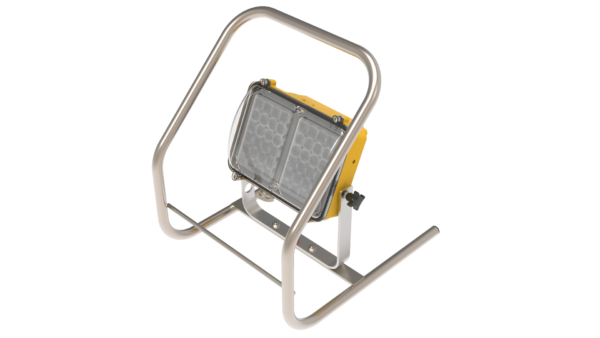

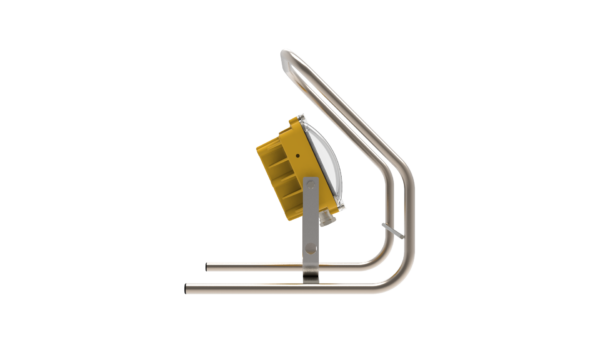

Chalmit Luna LED Temporary Floodlight

ATEX & IECEx certified Temporary Portable Floodlight for use in Zones 1 & 21.

Clear

Share this product:

The Luna Floodlight is an easily portable, reliable and highly powerful luminaire that directs a crisp, targeted output (up to 5,600lm) where you need it most.

With a robust, marine grade construction, maintenance-friendly design and LED lifespan of over 10 years, the Luna is ideal for temporary lighting applications.

  • ATEX & IECEx Certified for use in Zones 1 and 2 (gas), 21 and 22 (dust)
  • Lightweight (9kg) for easy portability
  • Marine grade construction with impact resistance of IK10, ideal for tough use
  • Dustproof & Waterproof (IP66/67)
  • Independent LED engines provide ultimate reliability and confidence on site
  • Market Leading LED Life of over 150,000 hours at 25°C
  • 50° beam angle for wide area illumination
  • Linkable version available

Applications

  • Utilities
  • Fuel tanks
  • Oil Refineries
  • Chemical plants
  • Confined spaces
  • Offshore platforms
  • Aircraft maintenance
  • Pipeline maintenance
Technical Specification HDL106TN Transportable Ex e LED Floodlight
Type of Protection Ex e mb (Increased Safety, Encapsulation)
Ex tb (Dust Protected Enclosure)
ATEX Classification Group II Category 2 GD
Area Classification Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14
Certificate EU Type Examination Certificate
Sira 10ATEX5115X
IECEx Certificate of Conformity
IECEx SIR 10.0055X
Coding Ex e mb IIC T* Gb
Ex tb IIIC T*** °C Db
Refer to table for T rating and Ambient
Enclosure LM6 Aluminium with yellow epoxy powder finish (RAL 1018) and Polycarbonate diffuser
Entry 2 x M20 cable entries
Termination 3 core 4mm² max. conductor with looping
Installation Stirrup mounted within transportable frame
Control Gear Electronic Driver
Optical Distribution Wide beam (50°)
Colour Temperature (CCT) 5000K (Cool White)
Colour Rendering Index (Ra) >70
Maintenance M8 Hex Head and M6 SKT Head
LED Lifetime @ 25°C Ambient L70 > 150,000hrs
Impact Protection IK10
Ingress Protection IP66/67 to EN 60529
Surge Protection 4kV line to line, 6kV line to earth
Electrical Supply Refer to Ordering Matrix (For details on Transformers or Splitter Boxes, please contact Internal Sales)

Download Chalmit Luna LED Temporary Floodlight Mini Brochure

Download Chalmit Luna LED Temporary Floodlight Datasheet
