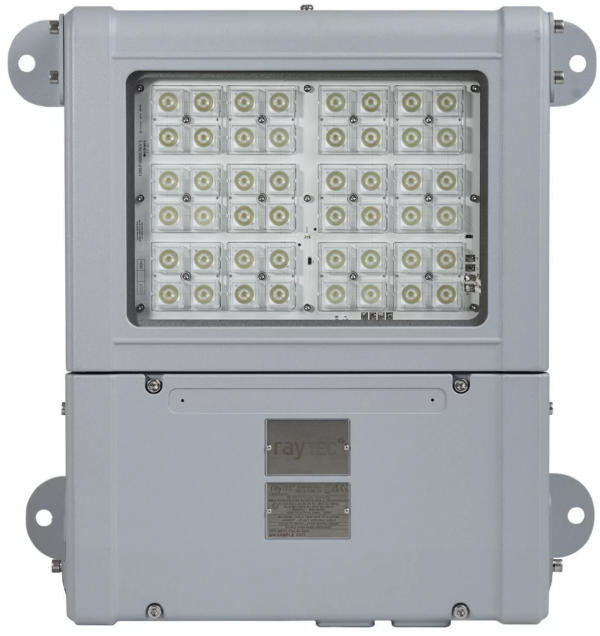

Raytec Spartan Mid-Power Bay Zone 2/22

SPARTAN Mid-Power Bay
Zone 2/22, 5,000lm – 15,000lm

High lumen output up to 15,000 lumens, designed to directly replace traditional discharge light sources up to 250W SON.

Please enter a quantity

Share this product:

Raytec Spartan Mid-Power Bay Zone 2/22

The SPARTAN Mid-Power Bay range is designed to illuminate large, open spaces within hazardous area environments. Available with a range of different outputs from 5,000 to 15,000 lumens, the Mid-Power Bay uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Built Powerful.

High lumen output from 5,000 to 15,000 lumens, along with a range of different beam patterns to effectively light up large open areas.

Built Flexible.

The modular design allows easy access to key components and the ability to mount the PSU remotely, making installation and maintenance easy.

Built Tough.

Constructed using tough, marine-grade aluminium and IP66 & IP67 rated, the MPBY is designed to withstand even the most challenging conditions.

ROBUST & DURABLE.



Robust and durable construction from marine grade aluminium and with a wide operating temperature for even the most challenging conditions.

EASY TO MAINTAIN.

Designed with maintenance in mind, featuring an innovative modular design to allow quick and easy on-site servicing.

MPBY 5K MPBY 7.5K MPBY 10K MPBY 12.5K MPBY 15K
Input 110-277V 50/60Hz AC only
Power 40W 60W 80W 100W 120W
Termination Incoming terminal block suitable for looping 4 core 4mm² cable
Power Factor >0.95
Cable Entries 2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex/UKEX approved blanking plug
MPBY 5K MPBY 7.5K MPBY 10K MPBY 12.5K MPBY 15K
Burning Position Universal
IP Rating IP66 & IP67
Temperature Range -40°C to +60°C
Weight 13.2kg (29.1lbs)
Enclosure Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit Colour Silver (RAL 9006)
Mounting Ceiling brackets included



MPBY 5K MPBY 7.5K MPBY 10K MPBY 12.5K MPBY 15K
ATEX Rating ATEX, UKEX and IEC Ex rated for Gas and Dust
Hazardous Area Rating Zone 2 (Gas), Zone 22 (Dust)
Certificates CML21ATEX3320 & IEC Ex CML21.0038 or CML21UKEX3321
Gas II 3 G D
Ex ec mc IIC T4 Gc
Ta= -40°C to+60°C
Dust Ex tc IIIC T90°C Dc
Ta= -40°C to+60°C
MPBY 5K MPBY 7.5K MPBY 10K MPBY 12.5K MPBY 15K
Lumen Output 5,149 7,663 10,298 12,873 15,325
LED Type Platinum Elite SMT LEDs
No. of LEDs 24 24 48 48 48
CRI 70+
Colour Temperature 5,700K

Raytec Spartan Mid-Power Bay Zone 2/22 Datasheet
