Hawke Apex E1FU Cable Gland

Flameproof, Increased Safety, Dust Protection and Restricted Breathing, Certified ATEX / IECEx / UKEX

Apex Cable Glands offer exceptional value for money without compromising on performance or reliability.

Please enter a quantity

Share this product:

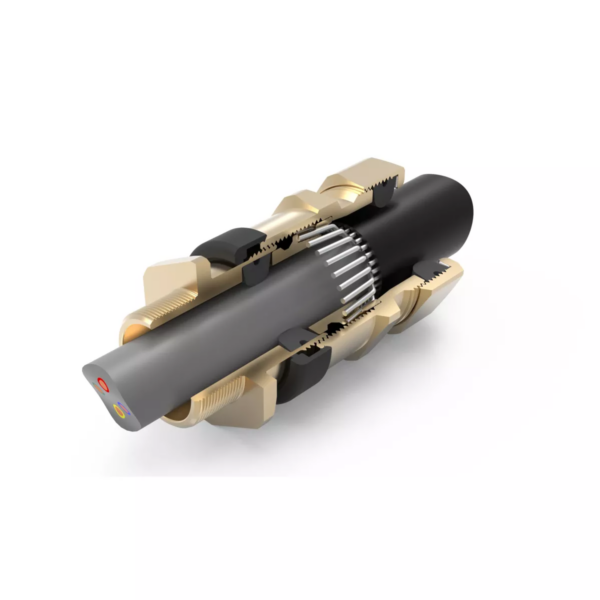

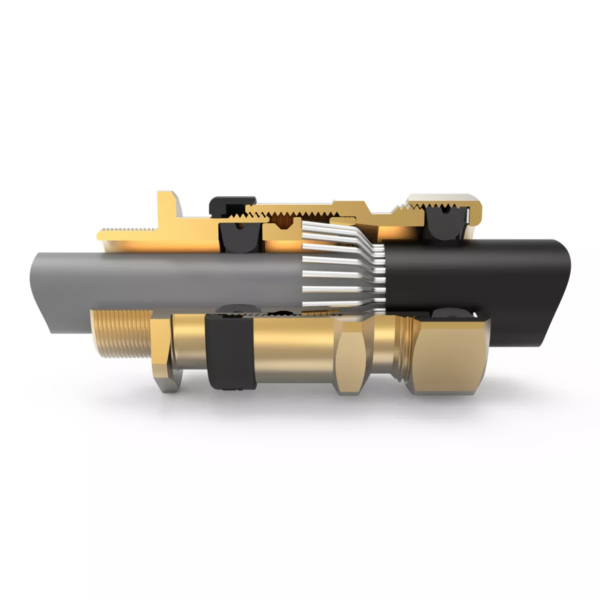

The Apex E1FU Cable Gland is dual certified Exe/Exd, robust and for use with unarmoured, single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables. The gland provides an elastomeric seal onto the cable inner sheath, and an IP and retention seal onto the cable outer sheath.
  • Dual Certified Double Seal Cable Gland
  • Elastomeric Exd flameproof seal on cable inner sheath
  • Robust Inspectable Multi-Use Armour Clamping arrangement supplied for all armour sizes
  • Optional Deluge Boot
General
Application Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22
Ingress Protection
  • IP66, IP67
  • Deluge Protection to DTS01
Material Manufactured in Brass, Nickel Plated Brass or 316L Stainless Steel
Operating Temperature Range Celcius -60°C to +130°C
Series Cable Glands for Group II Hazardous Areas



Certifications and Compliance
Certification
  • ATEX: CML 23ATEX1002X; CML 19ATEX4507X (Ex nR)
  • IECEx: CML 23.0001X; CML 21.0012X (Ex nR)
  • UKEx: CML 23UKEX10054X; CML 21UKEX4133X (Ex nR)
Hazardous Rating(s)
  • Ex II 2G Ex eb IIC Gb
  • 3G Ex nR IIC Gc
  • 1D Ex ta IIIC Da
Industry Standard(s) IEC/EN 62444 (Anchorage Type D), IEC/EN 60079-0, 1, 7, 15, 31
Ratings IK08 to IEC 62262



Hawke Apex E1FU Cable Gland Datasheet
