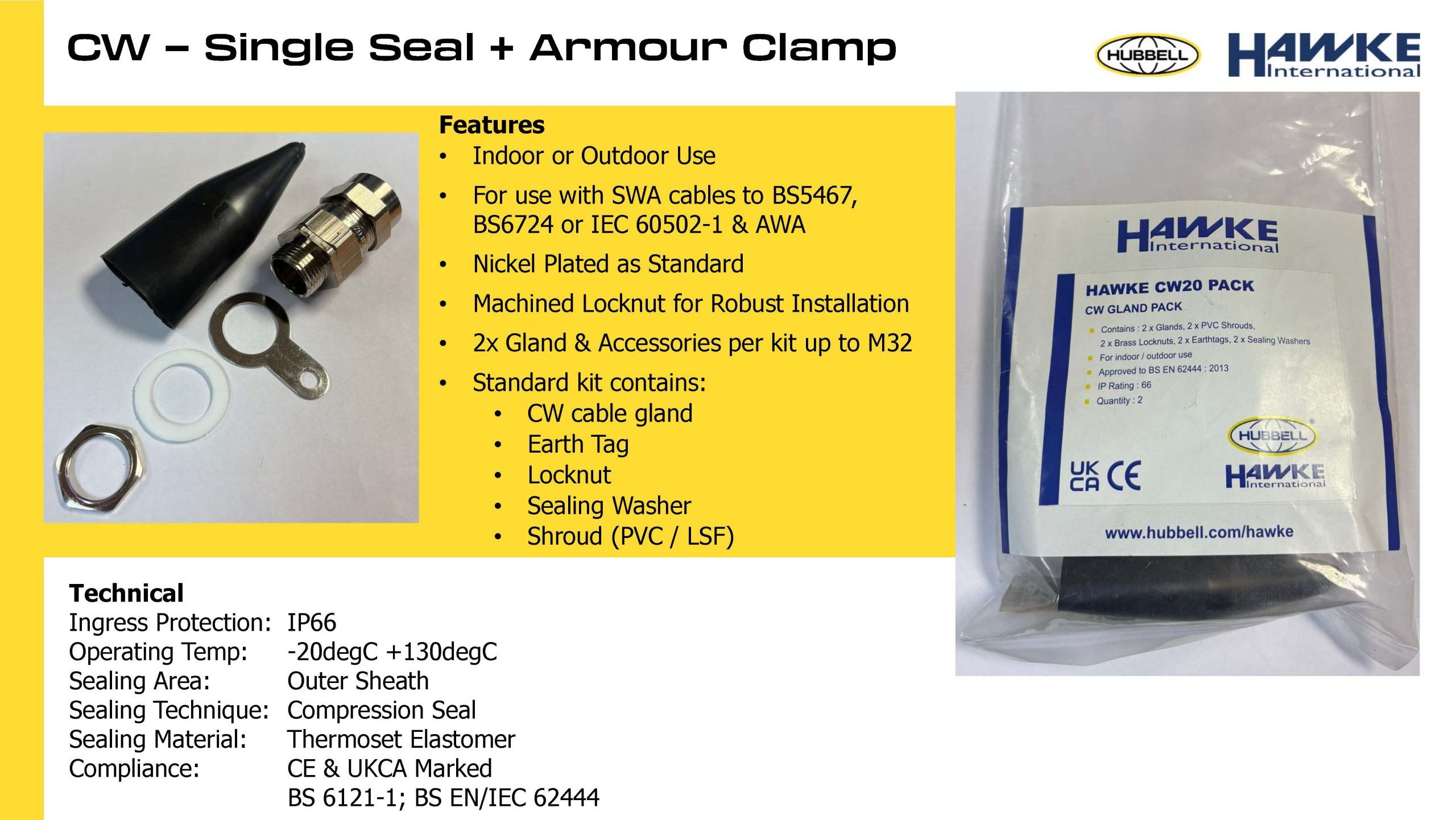

The Hawke CW Industrial Cable Gland is designed for use with single wire armour (SWA) and aluminium wire armour (AWA) cables across a wide range of industrial, utility, and infrastructure applications. Built to perform in both indoor and outdoor settings, this single-compression gland provides secure mechanical anchorage and electrical continuity for the cable armour.
Engineered from durable nickel-plated brass as standard, the Hawke CW gland ensures exceptional corrosion resistance and longevity. It is fully compliant with low and medium voltage power cables manufactured to BS 5467, BS 6724, or IEC 60502-1 standards.
Key Features & Benefits
-
Application: Suitable for indoor and outdoor use with armoured cables.
-
Cable Compatibility: Designed for use with SWA and AWA cables conforming to BS 5467, BS 6724, or IEC 60502-1.
-
Material Construction: Manufactured from robust nickel-plated brass for enhanced durability.
-
Ingress Protection: Delivers reliable IP66 environmental sealing.
-
Robust Installation: Features a machined locknut and a standard 15mm entry thread length.
-
Wide Operating Range: Built to withstand harsh temperatures from -20°C to +130°C.
Technical Specifications
-
Brand: Hawke
-
Product Type: Industrial Cable Gland (CW Series)
-
Ingress Protection (IP Rating): IP66
-
Standard Compliance: IEC/EN 62444 (Anchorage Type D), Impact Category 8 to BS 6121
-
Operating Temperature: -20°C to +130°C.
Kit Contents (Dependent on Size)
-
M16 – M32 Sizes: Includes 2 x CW cable glands, matching earth tags, locknuts, sealing washers, and PVC or LSF shrouds.
-
M40 – M75 Sizes: Includes 1 x CW cable glands, earth tag, locknut, sealing washer, and PVC or LSF shroud.
