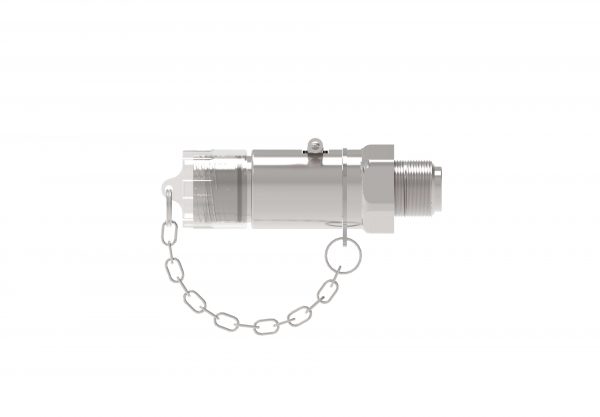

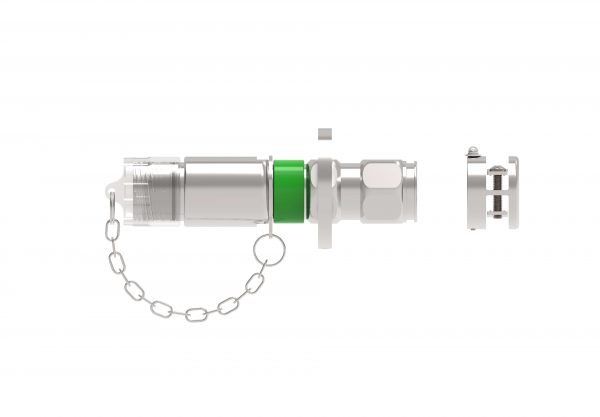

Hawke FibreEx Connector

POA

4 or 8 way Connectors designed for the safe and simple installation of optical equipment in to hazardous areas.

Please enter a quantity

Share this product:

In a digital age, one need is clear – the need to process ever-increasing amounts of data at lightning fast speeds. Fibre optics has long catered for this need in commercial applications but, until now, fibre technology has posed serious ignition risk in hazardous areas. The Fibre Ex range combines Hawke’s extensive experience in hazardous environments with specialist knowledge of Fibre Optic technology to safely bring power of Fibre Technology to Ex environments.

  • Certified to the latest BS EN 60079-28 Optical Radiation Standard
  • Ideal for providing ultra-high bandwidths and sensing for some of the world’s harshest environments
  • Keyed Positions for the prevention of pin damage
  • All BR Connectors Supplied pre-terminated
  • Our unique 4 start ACME thread offers a smooth and quick fully mating action in less than two turns for fast and simple installation
  • Easy to install and inspect
  • Profiled spigot and connector body prevent cable rotation eliminate cable damage
  • Termination Service Available from Acal BFi on request
  • Fibre Technology – Available in both single and multimode option in 4 and 8 way configurations
Certifications and Compliance
Hazardous Rating(s)
  • Ex op pr
  • Ex [dbe] op pr – for bulkhead/ box head mount version
  • Ex op is – with separately certified ‘op is’ source
IP Rating
  • IP66
  • IP67
Industry Standard(s)BS EN 60079-28:20

FibreEx Connector Datasheet
