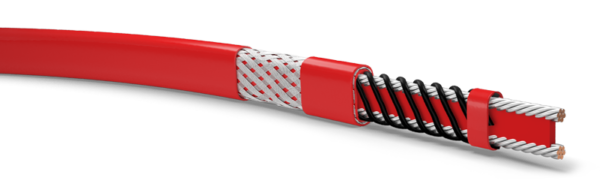

nVent Raychem XTV Heat Trace Cable
1 / 1
Home › Hazardous Area Products › Trace Heating › Self-regulating Heating Cables › Raychem XTV Trace Heating Cable

Raychem XTV Trace Heating Cable

High-Temperature Self-Regulating Heating Cables, Electrical Freeze Protection and Process-Temperature Maintenance for both Hazardous and Non Hazardous Locations.

Clear

Share this product:

XTV Self-Regulating Heating Cable

nVent RAYCHEM XTV self-regulating trace heating cables are mainly used for freeze protection of pipes and vessels that require steam cleaning and process temperature maintenance, up to 250 °F/121 °C. They withstand intermittent exposure to 482 °F/250

 °C. The fluoropolymer outer jacket (-CT) provides high chemical resistance against aggressive organics and corrosives.

Features

  1. The heating cable shall consist of two 14 AWG nickel-plated copper bus wires, separated by a fluoropolymer spacer and helically wrapped with a self-regulating fluoropolymer fiber that controls power output so that the cable has an unconditional temperature identification number (T-rating) of T2C (446°F or 230°C) or lower without use of thermostats.
  2. A ground-fault protection device set at 30 mA, with a nominal 100-ms response time, shall be used to protect each circuit.
  3. The heating cable shall have a tinned copper braid with a resistance less than the heating cable bus wire resistance as determined in a type test (ASTM, B193, Sec. 5). The braid shall be protected from chemical attack and mechanical abuse by a fluoropolymer outer jacket.
  4. The heating cable shall have continuous exposure (maintain) capability up to 250°F (121°C) and intermittent exposure capability up to 482°F (250°C or 250 psi steam), as manufactured by nVent.

For detailed product specifications, please refer to the product datasheet.

nVent Raychem XTV Trace Heating Cable Datasheet
