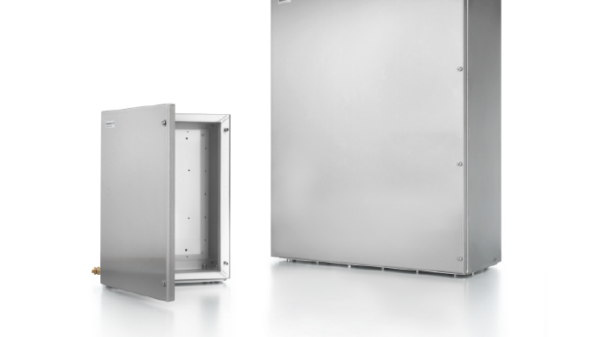

Weidmuller Klippon® EBx Enclosures

Stainless steel enclosures for use within explosive-risk zones: The Klippon® EBx enclosure series features good performance characteristics, even under difficult environmental surroundings. And it meets the requirements of explosive-risk zones found in oil and chemistry hazardous areas.

Cable Systems provide an in-house Design, Assembly & Certification service for this item.

Please enter a quantity

Share this product:

The new Klippon ® EB enclosure series has been specially designed for use in challenging environments. It reliably meets all requirements for use in harsh environments and is characterised by attractive performance features. The cost-effective stainless steel enclosures allow a very economical calculation and are also suitable for projects with a limited budget. In addition to Klippon ® EBi for industrial applications, there is Klippon ® EBx for hazardous areas. Enclosures with cULus approvals are available on request.

Klippon® EBx

The essential box for use in potentially explosive atmospheres in the oil, gas, and chemical industries

Your benefits
  • Robust enclosures for hazardous areas with attractive price-performance ratio
  • Great size range with two different locking systems: 10 variants with quarter lock system and 11 variants with hinged screws
  • Equipped with a rain gutter that prevents water from entering the enclosure
  • Equipped with pressure control preventing that the gasket will be stressed (only HS-versions)
  • Perfect for project business
  • High-quality stainless steel 316L/1.4404 with a thickness of 1.5 mm


Technical data
material Enclosure body: with stainless steel.4301(SUS304) or1.4404(SUS316),sheet thickness 1.5mm
Lid: with1.5mm sheet(2.0mm only for height 600xwidth 400mm and above)
Surface treatment Mechanical brushed
Gasket Silicon
External earthing Brass go-through M10 bolt
Internal earthing Stainless steel M6 stud
Components fixing Rail assembly with TAS20/TS35, or on a mounting plate via screws
Enclosure installation 4xM6 threaded blinded nuts (enclosure with height 300mm and below)
4xM8 threaded blinded nuts (enclosure with height 400mm and above)
IP grade IP66
Impact 10J
Temperature range -55°C to +135°C
Empty enclosure:
GB certification NEPSI GYJ19.1123U
Ex e IIC Gb
Ex tD A21 IP66
IEC Ex IECEx NEP 19.0014U
Ex eb IIC Gb
Ex tb IIIC Db
II 2G Ex eb IIC Gb
II 2D Ex tb IIIC Db
Assembly enclosure:
GB certification NEPSI GYJ19.1122
Ex e IIC T6…T4 Gb
Ex ia IIC T6…T4 Ga
Ex tD A21 IP66 T85°C…T135°C
IEC Ex IECEx NEP 19.0018X
Ex eb IIC T6…T4 Gb
Ex ia IIC T6…T4 Ga
Ex tb IIIC T85°C…T135°C Db
II 2G Ex eb IIC T6…T4 Gb
II 1G Ex ia IIC T6…T4 Ga
II 2D Ex tb IIIC T85°C…T135°C Db
