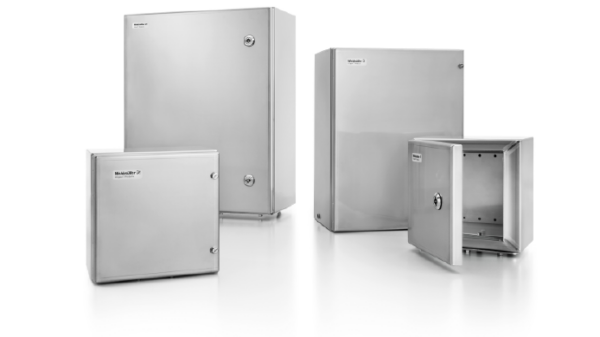

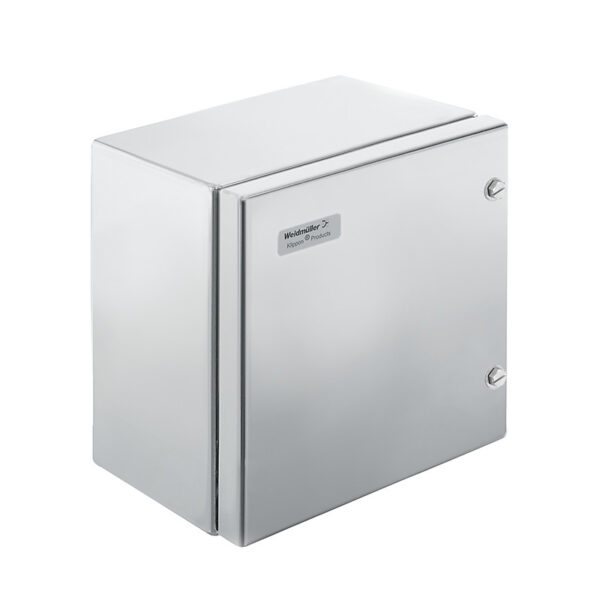

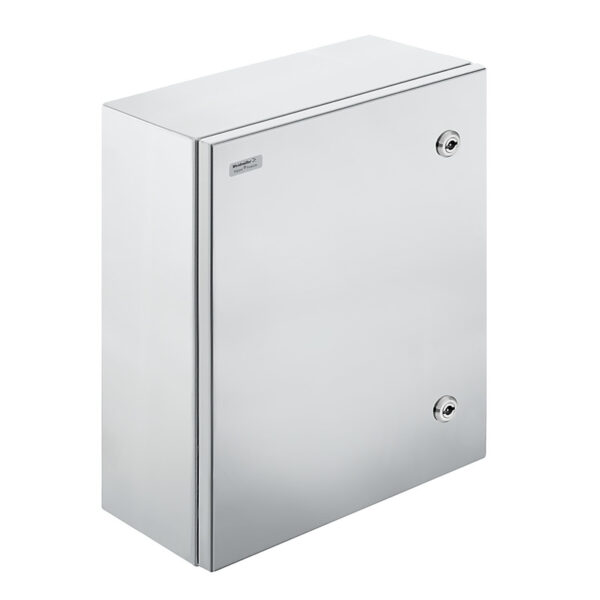

Weidmuller Klippon® EBi Enclosure (Essential Box industrial)

The cost-effective stainless steel enclosures allow a very economical calculation and are also suitable for projects with a limited budget.

Cable Systems provide an in-house Design and Assembly service for this item.

Please enter a quantity

Share this product:

The new Klippon® EBi enclosure series has been specially designed for use in industrial environments. It reliably meets all requirements for use in harsh environments and is characterised by attractive performance features. The cost-effective stainless steel enclosures allow a very economical calculation and are also suitable for projects with a limited budget. In addition to Klippon® EBi for industrial applications, there is Klippon® EBx for hazardous areas. Enclosures with cULus approvals are available on request.

Redesign: Klippon® EBi

Implementing high safety requirements economically with increased flexibility for customer projects

Your benefits
  • High-quality stainless steel 304/1.4301 with a thickness of 1.5 mm
  • Equipped with a rain gutter that prevents water from entering the enclosure
  • Robust enclosure lid with Hinge Screw or Quarter Lock locking system
  • Surface finish, inside and outside, in plain stainless steel (2B)
  • Neoprene cover and flange plate gasket
  • Optionally available with or without flange plate (3.0 mm)
General information
Areas of useHarbour facilities,
Machine construction,
Transportation, Marine
engineering, Packaging
industry, Process industry
Material thickness1.5 mm
Material thickness of enclosure1.5 mm
Opening angle lid125 °
StandardsDIN EN 62208, IEC 60529
Seal materialPolyurethane foamed
Operating temperature, min.-40 °C
Impact resistance10.00 J
Enclosure attachmentFixing lugs, Installation
through the housing rear
wall
Integral fixingScrewed
Installation adviceWelded assembly angle,
Mounting plate
Material thickness of cover1.5 mm
Material thickness of flange1.5 mm
Seal material of coverPolyurethane foamed
MaterialStainless steel 1.4301
(304)
Surface finishBrushed
Operating temperature, max.85 °C
Protection degreeIP66
Lid attachmentQuarter-turn fastener with slotted insert / Slotted Fixing Screw

Weidmuller Klippon® EBi Enclosures Datasheet
