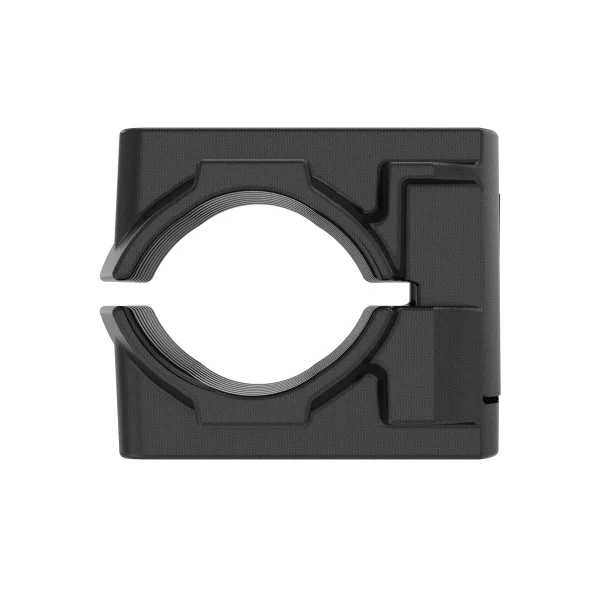

Dual Bolt Low Smoke & Fume Cable Cleats for Single & Parallel Cables, for cable diameters ranging from 36–130 mm, 1.4–5.1 inch in single/parallel formations
The Dual Bolt LSF Cable Cleat is designed for single and parallel cable installations where low smoke and fume materials are required, while delivering enhanced holding strength and control. The dual bolt configuration provides a more secure, balanced clamping solution, helping maintain cable positioning under load. Combined with side and top opening access, it supports flexible installation in both new and retrofit applications. Designed to IEC 61914:2021 standards, this cleat delivers dependable performance in installations where safety, organisation, and reliability are essential.
- Low Smoke Performance: Suitable for environments where reduced fumes are critical
- Stronger Cable Hold: Dual bolt design delivers added stability under load
- Balanced Clamping: Even force distribution helps minimize localised stress points
- Versatile Installations: Side and top opening access for flexible placement in tight layouts
- Multi Configuration Use: Supports both single and parallel cable runs
- Proven to Perform: Independently tested to IEC 61914:2021 standards
The non metallic LSF construction helps limit smoke and fume generation in the event of fire, making it suitable for enclosed or safety focused installations. The dual bolt design enhances restraint by distributing clamping force across two fixing points, improving stability and reducing cable movement during operation. Combined with flexible side and top opening access, this design supports efficient installation and consistent cable positioning, delivering a practical, safety driven solution for single and parallel cable applications.
| CATALOGUE NUMBER |
SIZE RANGE mm (inch) |
LENGTH mm (inch) |
HEIGHT mm (inch) |
MASS PER PAIR g (lb) |
| P1B018022 | 18-22 (0.71-0.87) | 48.5 (1.91) | 40-46 (1.57-1.81) | 38 (0.08) |
| P1B021025 | 21-25 (0.83-0.98) | 51.6 (2.03) | 43-49 (1.69-1.93) | 40 (0.09) |
| P1B024029 | 24-29 (0.94-1.14) | 55.6 (2.19) | 46-53 (1.81-2.09) | 46 (0.10) |
| P1B028033 | 28-33 (1.10-1.30) | 59.7 (2.35) | 50-57 (1.97-2.24) | 50 (0.11) |
| P1B032041 | 32-41 (1.26-1.61) | 67.1 (2.64) | 54-65 (2.13-2.56) | 58 (0.13) |
| P1B040049 | 40-49 (1.57-1.93) | 75.3 (2.96) | 62-73 (2.44-2.87) | 70 (0.15) |
| P1B048057 | 48-57 (1.89-2.24) | 83.4 (3.28) | 70-81 (2.76-3.19) | 82 (0.18) |
