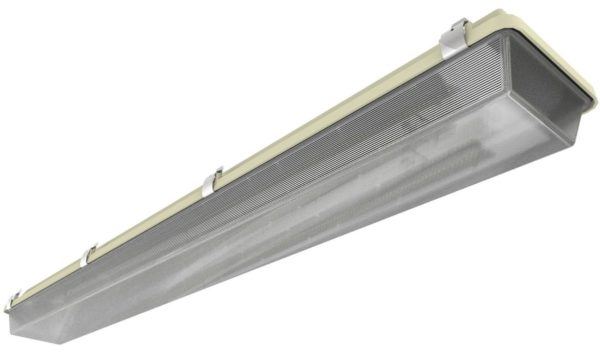

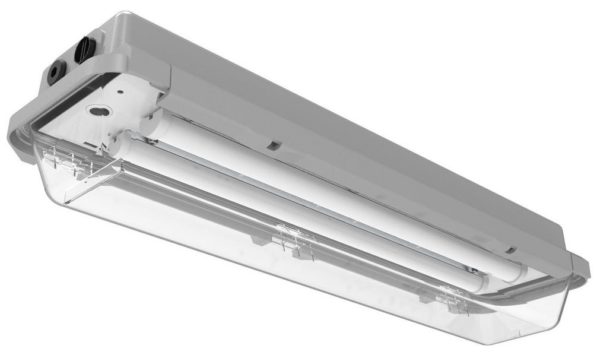

Chalmit Protecta III LED Industrial (PR3I)

POA

Fluorescent linear with GRP body for Industrial areas

Please enter a quantity

Share this product:

The Industrial Protecta III is a high quality LED linear delivering unparalleled performance and all the recognised benefits of the existing Protecta range; a proven robust enclosure, excellent IP and low maintenance features which are key to heavy industrial and harsh marine environments.

Expected useful life to 70% of the initial lumens (L70) is a market leading 155,000 hours at 45°C and, combined with a lightweight geartray design utilising fully replaceable LED strips and driver, we can deliver a unique product with effective long term maintenance capabilities.

  • Highly Energy Efficient
  • Screwless mains terminals
  • DTS-01 deluge tested
  • Battery monitoring and automatic self test
  • 155,000 maintenance free hours at 45°C
  • Simple rugged construction
  • Maintenance free lifetime of 120,000hrs @ 25°C

Mounting Options
Ceiling. Wall. Suspended. Pole/Stanchion.

Standard Specification
Protecta III LED Linear
EnclosureGRP body with polycarbonate cover
GeartrayWhite coated zintec
Entry4 x M20 cable entries – 2 at each end
Termination3 core 4mm² max conductor with looping and 16A rating through wiring [4 core on Emergency]
Installation2 x M8 moulded-in stainless steel bushes located on the rear of the body
Control GearElectronic Driver
Colour Temperature (CCT)4000K (Neutral White)
Colour Rendering Index (Ra)≥70
MaintenanceQuick release diffuser clamp and hinged cover
LED Lifetime @ 45°C AmbientL70 ≥ 155,000hrs
Maintenance Free Lifetime120,000hrs @ 25°C
BatteryInternal Ni-Cd (6V) [Emergency version only]
Emergency Duration3 Hours
(02L version = 33% output, 04L version = 23% output , 07L version = 12% output)
Ingress ProtectionIP66/67 to EN 60529
Surge Protection02L = 1kV; 04L/07L = 4kV (line to line)
Electrical Supply120-277V AC, 50/60Hz
127-300V DC
220-240V AC, 50/60Hz [Emergency version only]

Chalmit Protecta III LED Industrial (PR3I) Datasheet
