The Hawke A2 Cable Gland is a high-performance, single-compression industrial gland manufactured by Hawke International. Designed for terminating unarmoured, circular plastic or rubber-sheathed cables, it provides robust mechanical retention and environmental sealing across indoor, outdoor, commercial, and industrial applications.

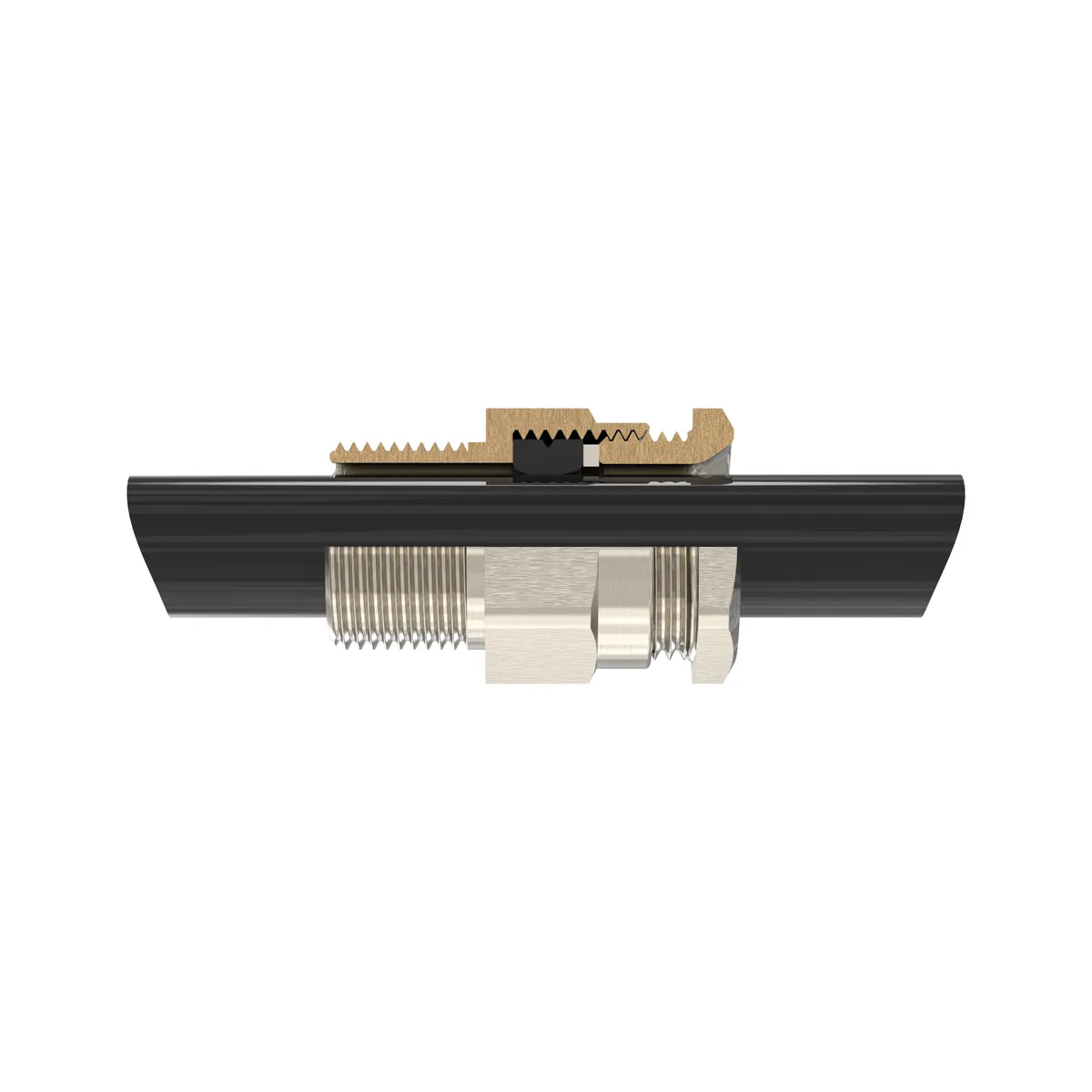

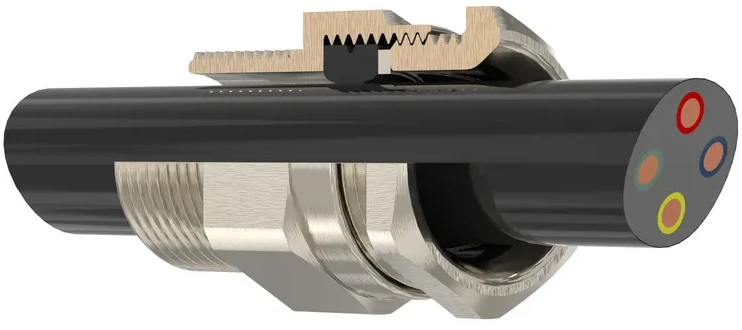

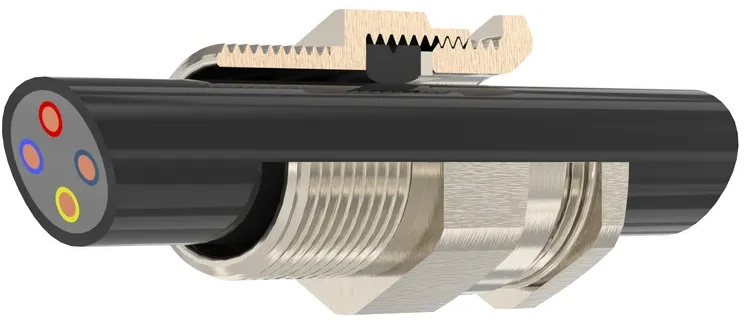

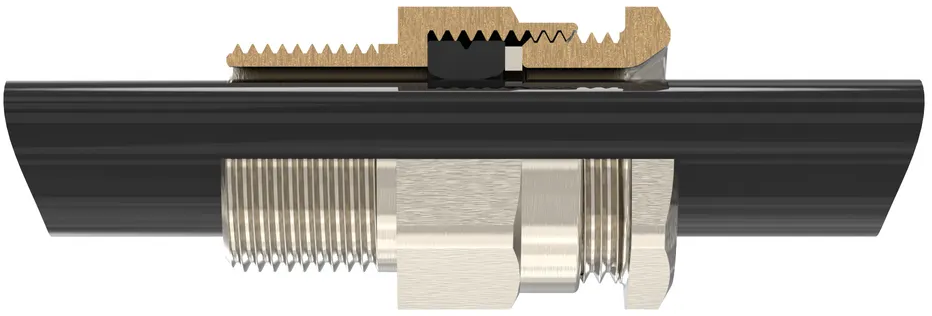

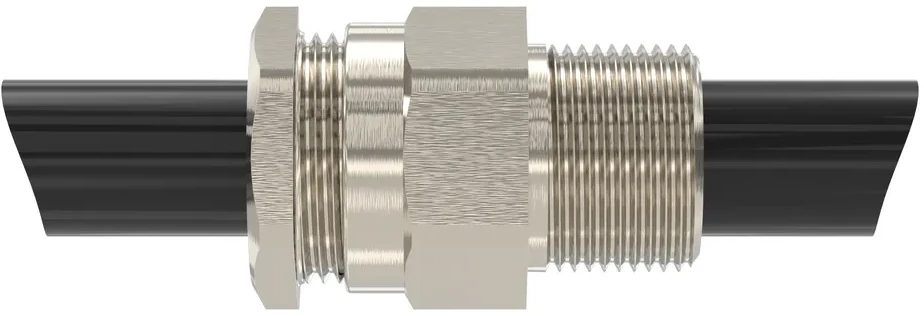

Constructed from brass with a premium nickel-plated finish as standard, the Hawke A2 Cable Gland features a precision-machined locknut and an elastomer compression seal that grips the outer cable sheath. This design creates a durable barrier against dust, water, and contaminants while delivering IP66 ingress protection and an operating temperature tolerance from -20°C to +130°C.
Key Features of the Hawke A2 Cable Gland
- Versatile Unarmoured Termination: Suitable for indoor and outdoor installations utilizing circular unarmoured plastic or rubber sheathed cables.
- Durable Construction & Finish: Precision-machined brass body with standard nickel plating for long-term corrosion resistance.
- Reliable Ingress Protection: IP66 rating achieved via a high-performance thermoset elastomer compression seal on the cable outer sheath.
- Standardized Metric Threads: Features a standard 15mm entry thread length across the entire range, from M20 up to M75 sizes.

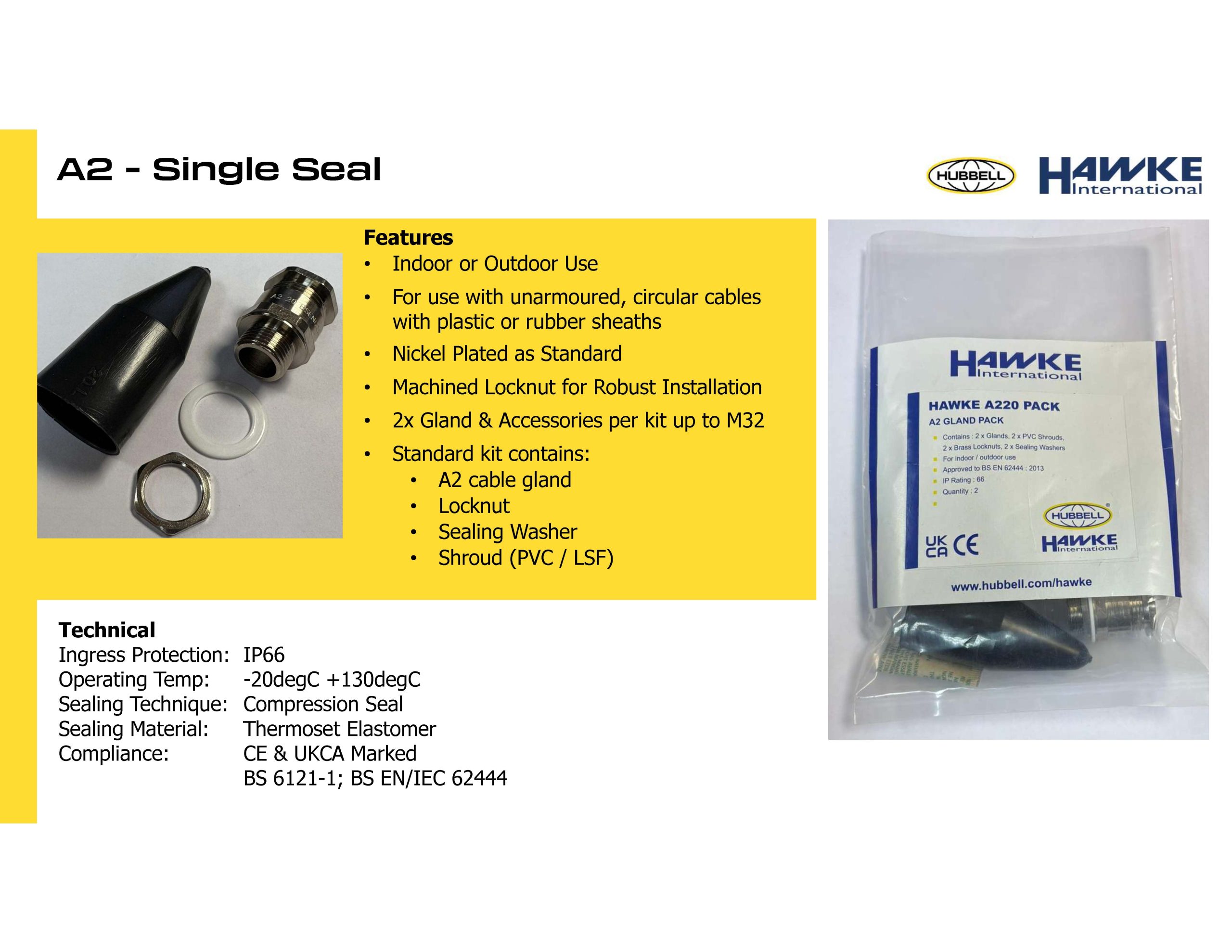

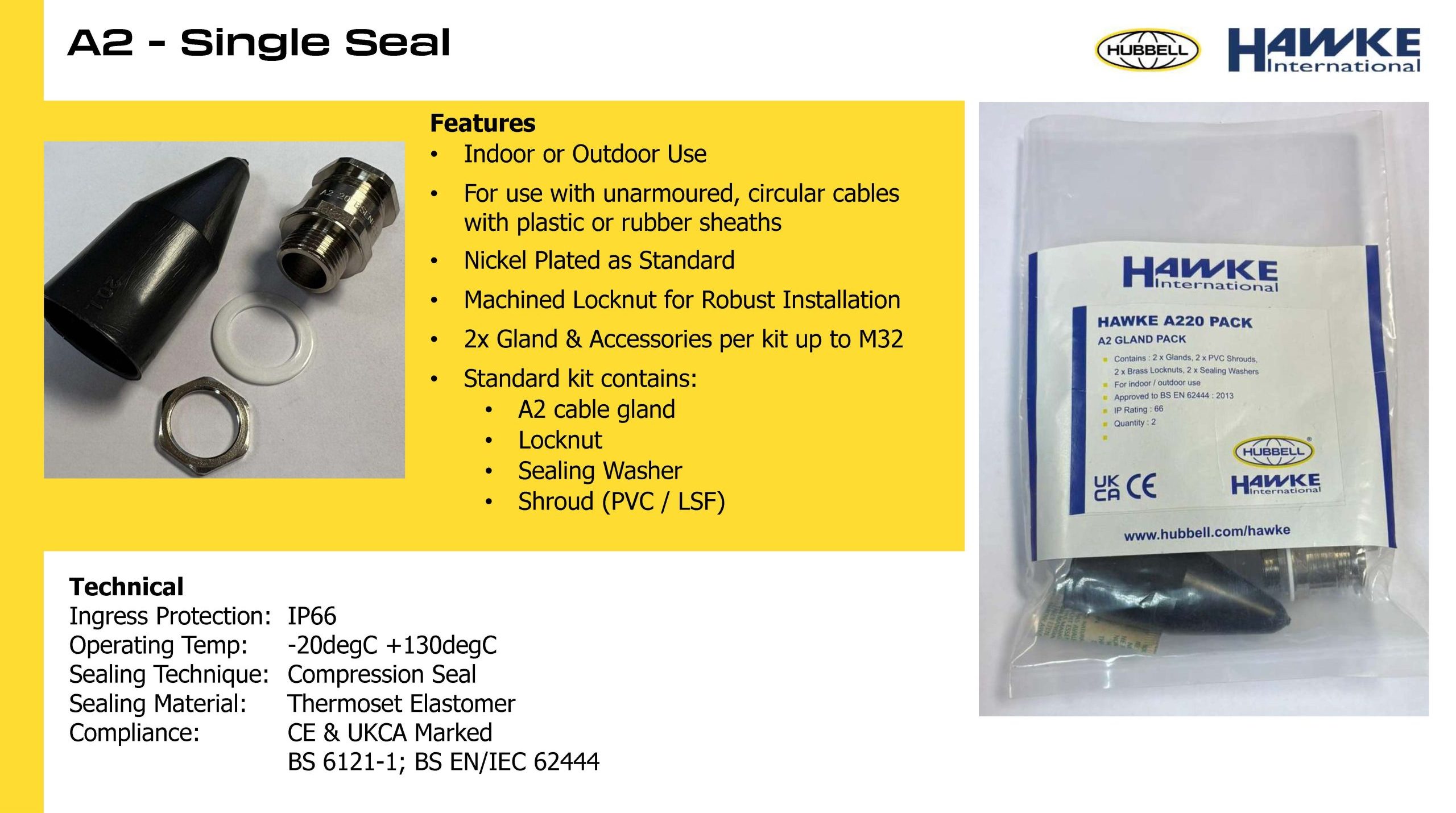

- Complete Gland Kits Available: Off-the-shelf PVC and LSF cable gland kits supplied with earth tags, locknuts, sealing washers, and shrouds.
Technical Specifications and Standards
- Design Standards: BS 6121-1 and BS EN/IEC 62444 compliant.
- Mechanical Rating: Anchorage Type B with Impact Category Level 8 protection.
- Ingress Protection: IP66 rated for harsh climatic conditions.
- Operating Temperature: -20°C to +130°C operational range.
- Kit Contents:
- M20–M32 Sizes: Includes 2x A2 cable glands, earth tags, locknuts, sealing washers, and PVC or LSF shrouds.
- M40–M75 Sizes: Includes 1x A2 cable gland, earth tag, locknut, sealing washer, and PVC or LSF shroud.
The Hawke A2 Cable Gland is ideal for mounting directly into enclosures, distribution boards, motor control panels, and junction boxes. For compatible accessories, view our range of PVC shrouds and thread convertors, or refer to the size selection table above for specific thread pitch and dimension limits.
