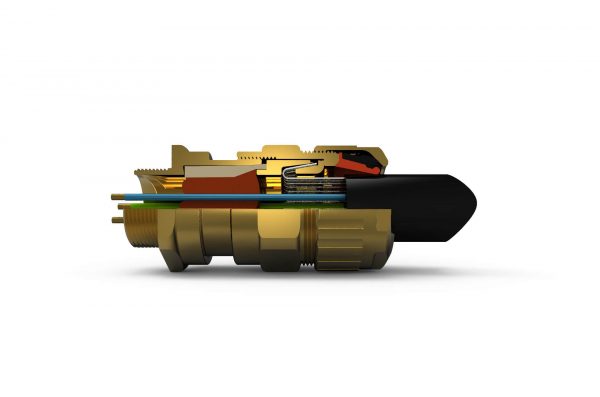

Hawke 653/T Group I Mining Cable Gland

Flameproof Exdb / Increased Safety Exeb / Dual Certified ATEX – IECEx

Clear

Share this product:

The 653/T cable gland is suitable for use with pliable wire armoured cable. The cable gland is certified Exdb and Exeb and is suitable for installation in mining applications.

  • Suitable for use with cable inner sheaths that are not effectively filled, compact and/or circular, have tape bedding or have hygroscopic fillers.
  • For use with cables that exhibit ‘cold flow’ characteristics.
  • Suitable for enclosures containing an ignition source.
  • Provides a barrier seal between the individual insulated cores within the cable and prevents entry of the products of an explosion into the cable.
  • Assembly of the cable gland compresses and distributes the compound evenly to create a barrier seal at the point of entry into the enclosure.
  • The compound chamber may be separated from the cured compound to ensure that the chamber has been effectively filled. If required, external voids can be repaired.
  • Provides armour clamping, for pliable wire armour cable.
  • Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath.
    Manufactured in Brass (standard), Nickel Plated Brass or 316 Stainless Steel. Brass NPT entries are nickel plated as standard.

Ordering Format [ Gland Type / Size / Thread / Material / Options ]; Example: 653/T / C / M32 / Brass

General
ApplicationSuitable for use in mining applications.
Ingress Protection
  • IP66
  • IP67
  • IP68 (30 metres for 7 days) *additional installation procedures required
MaterialBrass (standard); Nickel Plated Brass; 316 Stainless Steel or Aluminium; Brass NPT entries are nickel plated as standard
Operating Temparature Range Celcius-60°C to +80°C
SeriesGroup I Mining Cable Glands
Certifications and Compliance
Certified Listed
  • ATEX
  • IECEx
  • EAC
Industry Standard(s)
  • IEC/EN 60079-0
  • IEC/EN 60079-1
  • IEC/EN 60079-7

653/T Group I Mining Cable Gland Datasheet
