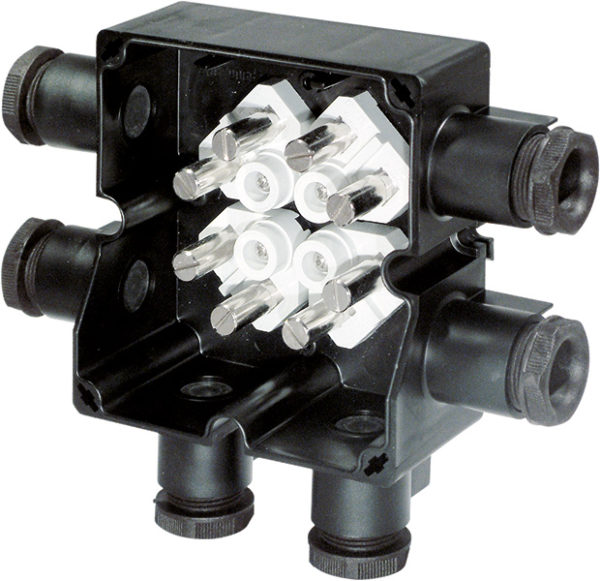

The robust junction boxes made of plastic and light alloy are featured by their simple mounting and installation capability and their design. They are fitted with pillar terminals for cable of up to 6 mm2. The practical orientated housing form allows for problem-free access to the connection terminals for installation.
With the CEAG mounting system, the plastic junction boxes can be economically used for mounting on walls, trellis and pipes. With wire and cable entries in the sizes M25 or M32 for Ø 8 – 17 mm or Ø 12 – 21 mm respectively, all requirements for the modern day installation technology are fulfilled. For cable with armouring, there are junction boxes available with internal metal clamps or light alloy versions allowing for screw joints. For the wire and cable entries that are not used, there are certified blanking plugs supplied with the junction box. To enable a high chemical resistance of the light alloy junction boxes, these have been given an impact resistant plastic powder coating.
The cover screws and all other external metal parts are made of stainless steel (AISI 316L).
GHG 791 01 up to 6 terminals
| Cable gland | No. of terminals | Order No. |
| 2 x M25 for cable Ø 10-17 mm | 4 x Ex-e, 1 x PE | GHG7910101R0001 |
| 4 x M25 for cable Ø 10-17 mm incl. 2 x blanking plug M25 | 4 x Ex-e, 1 x PE | GHG7910101R0002 |
| 4 x M20 metal thread incl. 2 x threaded plug M20 | 4 x Ex-e, 1 x PE | GHG7910101R0019 |
| 4 x M25 for cable Ø 10-17 mm incl. 2 x blanking plug M25 | 4 x 4 Ex-e, 2 x PE | GHG7910101R0069 |
| 4 x M20 metal thread incl. 2 x threaded plug M20 | 4 x 4 Ex-e, 2 x PE | GHG7910101R0068 |
GHG 791 02 up to 8 terminals
| Cable gland | No. of terminals | Order No. |
| 4 x M25 for cable Ø 10-17 mm incl. 2 x blanking plug M25 | 6 x Ex-e, 2 x PE | GHG7910201R0006 |
| 4 x M32 for cable Ø 12-21 mm incl. 2 x blanking plug M32 | 6 x Ex-e, 2 x PE | GHG7910201R0007 |
| 6 x M25 for cable Ø 10-17 mm incl. 4 x blanking plug M25 | 6 x Ex-e, 2 x PE | GHG7910201R0001 |
| 6 x M32 for cable Ø 12-21 mm incl. 4 x blanking plug M32 | 6 x Ex-e, 2 x PE | GHG7910201R0002 |
| 6 x M20 metal thread incl. 4 x threaded plug M20 | 8 x Ex-e, 1 x PE | GHG7910201R0003 |
