Roxtec RM Cable Module Block

Roxtec RM modules are 60 mm (2.362″) deep and easy to adapt to cable and pipes of different sizes. When used with a solid core, the module functions as a spare module for future capacity.

Clear

Share this product:

Roxtec RM module with Multidiameter™

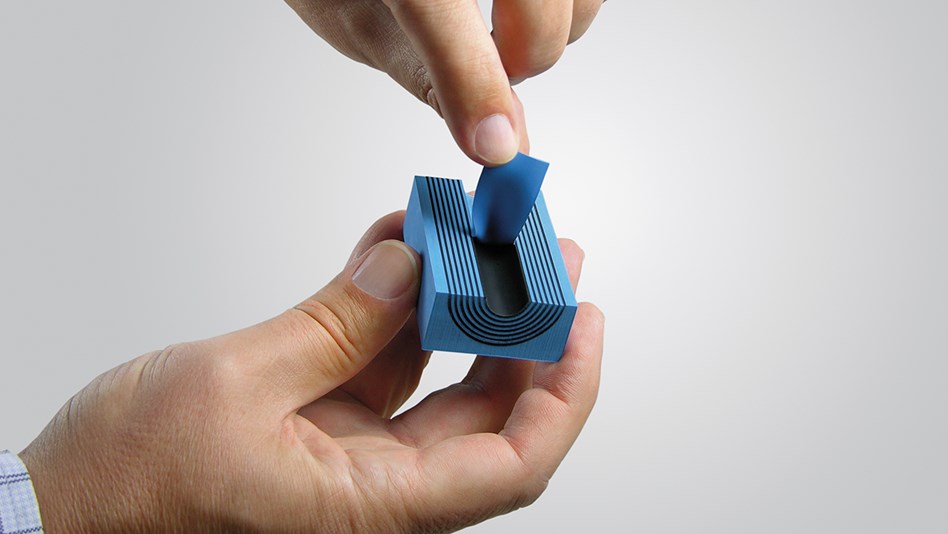

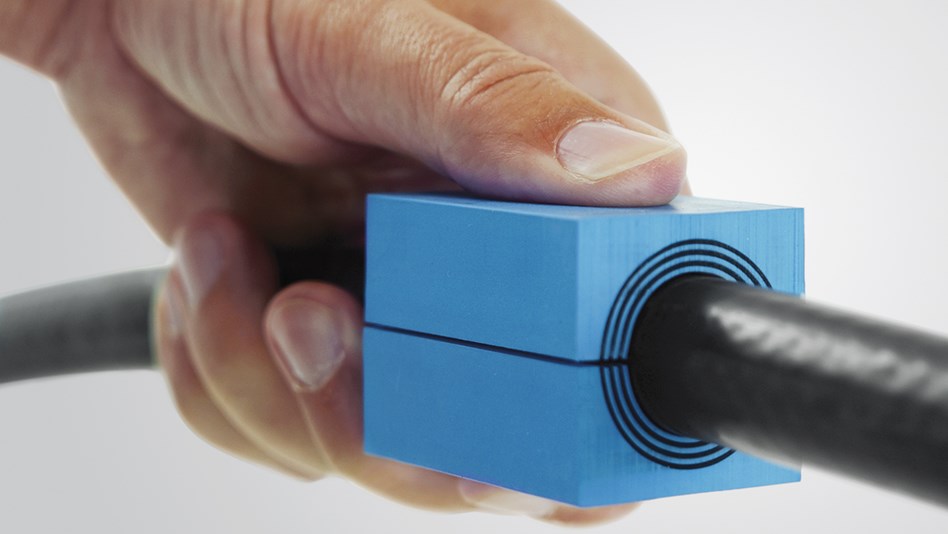

Roxtec, sealing modules, with core. A Roxtec RM sealing module consists of two halves, and has removable layers and a center core. Thanks to this technology called Multidiameter™, one single module can seal a cable or pipe over a span of several different diameters simply by peeling layers from the module halves. This ensures a perfect fit into the selected frame as part of a high performance cable sealing system.

Roxtec Multidiameter™ is an innovation for flexibility based on removable layers. It makes the mechanical system adaptable to cables and pipes of different sizes. With only a few parts you get a strong reliable barrier securing operational performance.

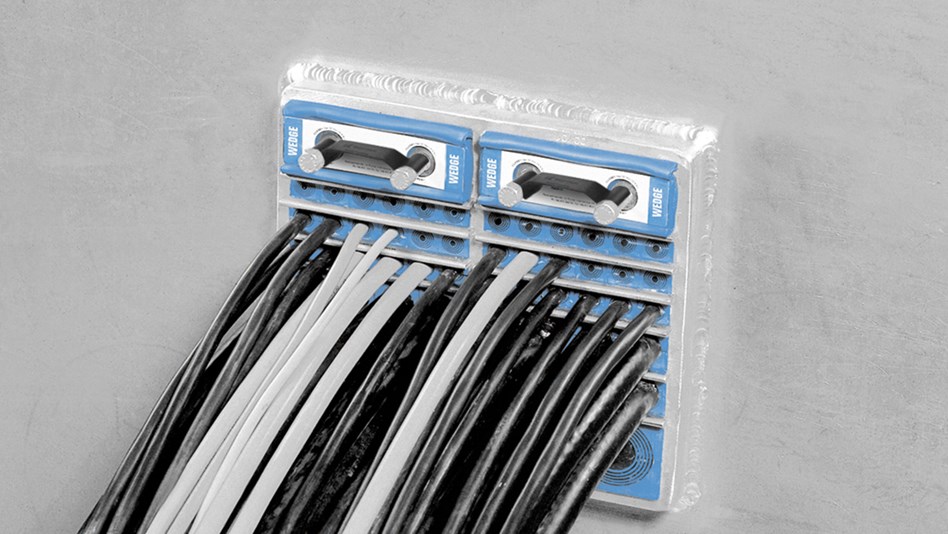

The system simplifies design, installation and inspection. Avoid surprises onsite due to late changes – and reduce the number of stock items. With spare modules in openable seals, you are ready for upgrades and high cable density.

Product Number of cables/pipes For cable/pipe Ø (mm) External dimensions WxHxD (mm) Weight (kg) Art. No
RM 15 1 3 – 11 15 x 15 x 60 0.02 RM00100151000
RM 15w40 3 3.5 – 10.5 40 x 15 x 60 0.05 RM00115401000
RM 20 1 4 – 14.5 20 x 20 x 60 0.04 RM00100201000
RM 20w40 2 3.5 – 16.5 40 x 20 x 60 0.07 RM00120401000
RM 30 1 10 – 25 30 x 30 x 60 0.08 RM00100301000
RM 30H90 1 10 – 25 30 x 90 x 60 0.25 103915
RM 40 1 21.5 – 34.5 40 x 40 x 60 0.14 RM00100401000
RM 40 10-32 1 9.5 – 32.5 40 x 40 x 60 0.14 RM00140101000
RM 60 1 28 – 54 60 x 60 x 60 0.32 RM00100601000
RM 60 24-54 1 24 – 54 60 x 60 x 60 0.33 RM00160201000
RM 80 1 48 – 71 80 x 80 x 60 0.6 5RM0000003350
RM 90 1 48 – 71 90 x 90 x 60 0.7 RM00100901000
RM 120 1 67.5 – 99 120 x 120 x 60 1.3 RM00101201000

Roxtec RM Module Block Datasheet
