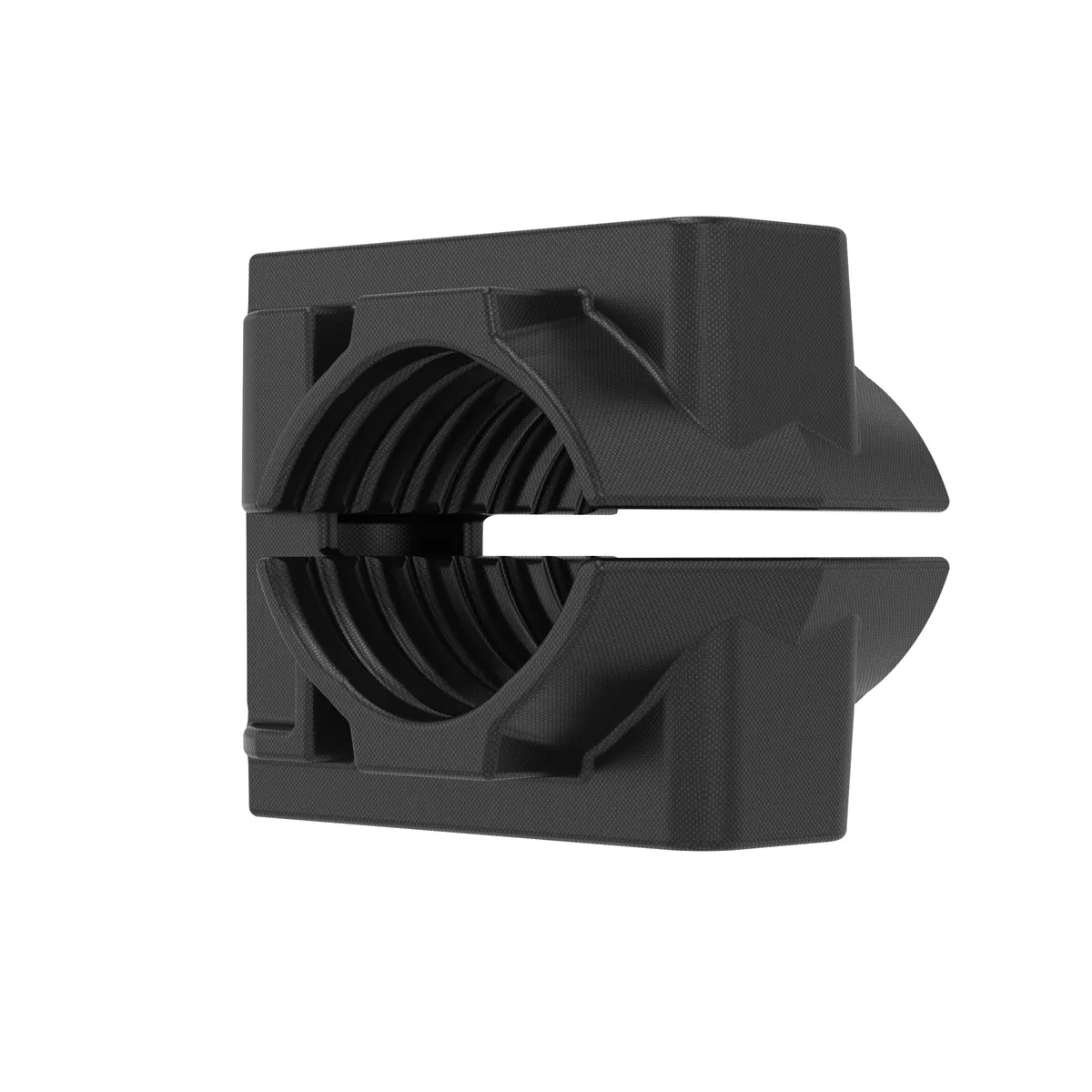

Single‑Bolt Low Smoke & Fume Cable Cleats for Single & Parallel Cables, for cable diameters ranging from 10–57 mm, 0.39–2.25 inch in single/parallel formations
In critical environments where safety is critical, material choice matters. The Single Bolt LSF Cable Cleat is designed to provide reliable cable restraint while using low smoke and fume materials suited for enclosed or high occupancy spaces. Ideal for single and parallel cable installations, it supports organised routing and consistent positioning without introducing unnecessary complexity. With a streamlined single bolt design and side and top opening access, it enables efficient installation in compact or pre installed systems. Built to meet IEC 61914:2021 standards, this cleat delivers dependable performance in applications where both cable management and safety requirements must be met.
- Low Smoke Material: Designed for applications where reduced smoke and fumes are required
- Streamlined Installation: Single bolt design minimises hardware and install time
- Flexible Access: Side and top opening configuration supports varied layouts
- Single and Parallel Compatibility: Suitable for multiple cable configurations
- IEC 61914:2021 Certified: Tested for proven performance
The non metallic LSF construction is engineered to reduce smoke and fume output in the event of fire, making it well suited for safety focused installations such as enclosed spaces or critical infrastructure environments. Combined with a single bolt fixing and flexible access design, it allows for efficient installation while maintaining secure cable positioning. This approach provides a practical, safety driven solution for managing cable systems in applications where material performance is just as important as mechanical restraint.
| CATALOGUE NUMBER |
SIZE RANGE mm (inch) |
LENGTH mm (inch) |
HEIGHT mm (inch) |
MASS PER PAIR g (lb) |
| P1B018022 | 18-22 (0.71-0.87) | 48.5 (1.91) | 40-46 (1.57-1.81) | 38 (0.08) |
| P1B021025 | 21-25 (0.83-0.98) | 51.6 (2.03) | 43-49 (1.69-1.93) | 40 (0.09) |
| P1B024029 | 24-29 (0.94-1.14) | 55.6 (2.19) | 46-53 (1.81-2.09) | 46 (0.10) |
| P1B028033 | 28-33 (1.10-1.30) | 59.7 (2.35) | 50-57 (1.97-2.24) | 50 (0.11) |
| P1B032041 | 32-41 (1.26-1.61) | 67.1 (2.64) | 54-65 (2.13-2.56) | 58 (0.13) |
| P1B040049 | 40-49 (1.57-1.93) | 75.3 (2.96) | 62-73 (2.44-2.87) | 70 (0.15) |
| P1B048057 | 48-57 (1.89-2.24) | 83.4 (3.28) | 70-81 (2.76-3.19) | 82 (0.18) |
