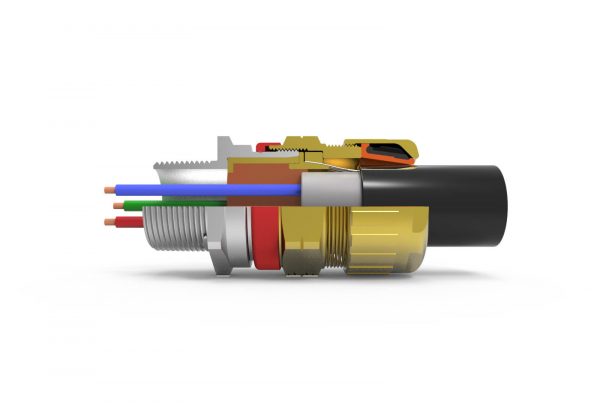

Hawke 753 American Series Cable Gland

POA

Explosion Proof / Flameproof Exd / Increased Safety Exe and Restricted Breathing ExnR barrier type cable gland for braided cable

Please enter a quantity

Share this product:

The 753 cable gland provides 2 independent seals for use with braid armoured marine shipboard jacketed or non-jacketed cable. The first is a flameproof barrier (compound) seal around each individual core, with an additional IP seal on the outer sheath. The cable gland is certified for Explosion Proof / IECEx and ATEX Approved Flameproof Exd / Increased Safety Exe and Restricted Breathing ExnR.

  • Provides a barrier seal between the individual insulated conductors within the cable and prevents entry of the products of an explosion into the cable.
  • Assembly of the cable gland/connector compresses and distributes the compound evenly to effect a barrier seal at the point of entry into the enclosure.
  • Provides an outer deluge seal to prevent moisture ingress to the cable armour and enclosure.
  • Deluge seal is coloured red to indicate hazardous locations product.
  • Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer jacket.

Ordering Format [ Gland Type / Size / Male Thread / Female Thread / Material / Options]; Example: 753 / C/ 1″/ NPT/ Brass

General
ApplicationSuitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
Ingress Protection
  • IP66
  • IP67
  • IP68
  • Deluge Protected to DTS01
MaterialBrass (standard); Nickel Plated Brass; 316 Stainless Steel or Aluminium; Brass NPT entries are nickel plated as standard
Operating Temparature Range Celcius-50°C to +60°C (UL) and -60°C to +80°C (ATEX / IECEx)
SeriesAmerican Series Cable Glands NEC/IEC
Type
  • Flameproof Exd
  • Increased Safety Exe
  • Dust Extb
  • ExnR
  • Extc
Certifications and Compliance
ATEX File NumberSira 06ATEX1295X; Sira 07ATEX4330X
Certified Listed
  • UL 2225
  • IEC/EN 60079-0
  • IEC/EN 60079-1
  • IEC/EN 60079-7
  • IEC/EN 60079-15
  • IEC/EN 60079-31
IECEx File NumberIECEx SIR 06.0082X
IP Rating
  • IP66
  • IP67
  • IP68
Industry Standard(s)
  • UL 2225
  • IEC/EN 60079-0
  • IEC/EN 60079-1
  • IEC/EN 60079-7
  • IEC/EN 60079-15
  • IEC/EN 60079-31
Nema Rating4X
UL File Number20141113- E84941

753 Cable Gland Datasheet
