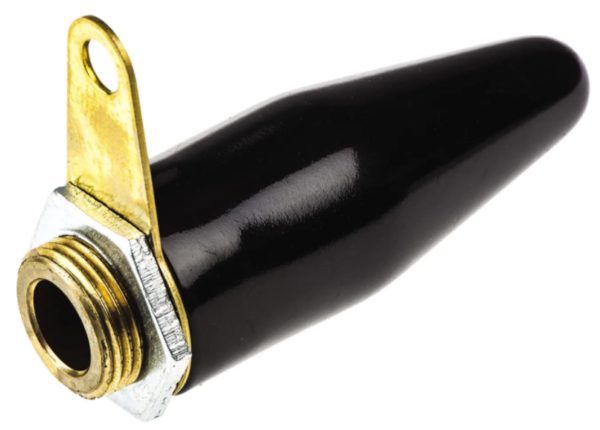

BICC Prysmian Bicon BW Cable Gland Kit

Indoor suitable for all for SWA cables

Kit comprises: BW gland, brass earth tag, zinc plated steel locknut and shroud

Clear

Share this product:

Bicon BW Brass Indoor Cable Gland and Accessories

BW Cable Glands are for use with all steel wire armoured cables

  • Indoor type for SWA cable
  • Brass indoor gland and accessories
  • For galvanized-steel single-wire armour plastic or rubber sheathed cables
  • For use in dry, dust free situations
  • Provides mechanical cable retention and electrical continuity via armour locking mechanism
  • Suitable for use with all Steel Wire Armoured Cables inc: BS 5467, BS 6622, BS 5308
  • CuZn39Pb3 brass alloy used for guaranteed strength and performance
  • Complies with BS 6121-1: 2005
  • Service temperature range -20°C to +90°C
Prysmian Bicon ReferenceSizeQuantity Per KitCable Dimensions (mm)BW Cable Gland Dimensions (mm)
Under Armour ∅ (A)Armour Wire ∅Entry Thread (D)Thread Length (E)Protrusion Length (F)Hexagon
MaxA/F (G)A/C (H)
420LSF-5220S211.60.9M20 x 1.510242224.9
420LSF-5320213.90.9/1.25M20 x 1.510252730.5
420LSF-5525219.91.25/1.6M25 x 1.5102632.936.8
420LSF-5632126.21.6/2.0M32 x 1.5102842.447.8
420LSF-5740132.11.6/2.0M40 x 1.515255057
420LSF-5950144.02.0/2.5M50 x 1.5153670.177.2
420LSF-6163155.92.5M63 x 1.515308087.4
420LSF-6275S161.92.5M75 x 1.515408595
420LSF-6375167.92.5M75 x 1.5154098.8109.2

Download BICC BW Datasheet
