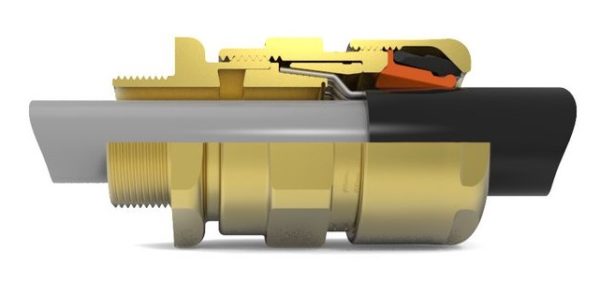

Hawke 151/RAC Cable Gland

Heavy Industrial single compression seal cable gland for armoured cable

Clear

Share this product:

The 151/RAC cable gland provides a single IP seals on armoured elastomer and plastic insulated cables. This cable gland come with our Reversable Armour Clamp (RAC ring) for use with single wire armour ‘W’, wire braid ‘X’ and steel tape armour ‘Z’ elastomer and plastic insulated cables.

  • Provides armour clamping using one clamping arrangement for all armour/braid types.
  • Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath.

Ordering Format [ Gland Type / Size / Male Thread / Female Thread / Material / Options]; Example: 151/RAC / C/ M32/ Brass; Example with alternative seal option: 151/RAC / C / 1 1¼” NPT /Brass / AR

General
Application
  • Outdoor or indoor use
  • For use with single wire armour ‘W’, wire braid ‘X’, aluminium strip armour ‘Y’ and steel tape armour ‘Z’ elastomer and plastic insulated cables.
Ingress Protection
  • IP66
  • Deluge Protected to DTS01
MaterialBrass (standard); Nickel Plated Brass; 316 Stainless Steel or Aluminium; Brass NPT entries are nickel plated as standard
Operating Temparature Range Celcius-60°C to +100°C
SeriesHeavy Industrial Cable Glands
TypeHeavy Industrial Cable Glands
Certifications and Compliance
Certified Listed
  • EN 62444
  • BS 6121: Part 1. Type CW, CX, CY and CZ
IP RatingIP66
Industry Standard(s)
  • EN 62444
  • BS 6121: Part 1. Type CW, CX, CY and CZ

151/RAC Cable Gland Datasheet
