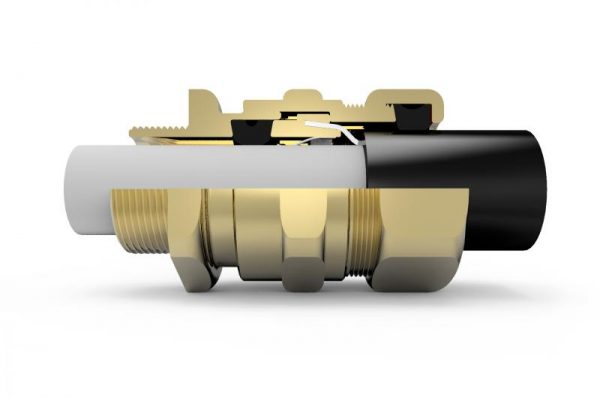

Hawke ToughMate E1W Cable Gland

POA

Please enter a quantity

Share this product:

A robust and simple dual compression cable gland for applications using SWA or AWA cable in a heavy industrial environment which is exposed to dust or extreme weather conditions. All cable glands can be supplied with a shroud, lock nut, serrated washer and an earth tag.

Combining market-leading Cable Gland technology with superior industrial strength, the Toughmate E1W is packed with a range a features. Take a closer look at how the E1W can benefit your project:

  • Simple robust 5 piece dual compression cable gland
  • Simple mechanical clamping arrangement for all SWA and AWA cable
  • Ease of assembly
  • High quality materials with exceptional anti corrosion properties
  • Tested to the latest industrial standards
  • Excellent sealing range
  • EMC tested
  • All hexagon parts are the same size
  • Provides cable retention seal onto the cables Outer and Inner Sheath
  • Low smoke and fume, zero halogen seals and shroud available
General
Construction and Test Standards:
  • BS EN 62444:2013
  • BS6121: Part 1 type E1W
Ingress Protection
  • IP66 IEC/EN 60529
MaterialBrass (standard), Nickel Plated Brass, 316L Stainless Steel with Neoprene Seal
Operating TemperatureRange: -60°C to +100°C
Clamping ArrangementTwo part armour clamp, single compression seal
EarthElectrical continuity using the armour wire termination (SWA, AWA)
Cable TypeSingle Wire Armour SWA and AWA
Kit InformationStand kit also available with a low smoke option. Use STD for Standard kit or LSF for low smoke
Note: Displacement or Compression seals do not prevent cold flow. IP seal required to maintain IP66.

ToughMate E1W Cable Gland Datasheet
