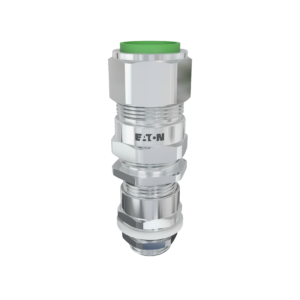

Hawke FireMate CW Cable Gland

POA

Please enter a quantity

Share this product:

A fire resistant, robust and simple design for applications using SWA or AWA cable in a heavy industrial, critical safety environment which is exposed to dust or extreme weather conditions. All cable glands can be supplied with a shroud, lock nut, serrated washer and an earth tag.

Utilising the very latest in fire resistant technology, the FireMate CW cable gland boasts a range of features that make it perfect for evacuation and rescue applications, including:

  • Simple robust 4 piece compression cable gland
  • Simple mechanical clamping arrangement for all SWA and AWA cable
  • Ease of assembly
  • High quality materials with exceptional anti corrosion properties
  • UV stable seal
  • Tested to the latest industrial standards
  • Excellent sealing range
  • EMC tested
  • All hexagon parts are the same size
  • Provides cable retention seal onto the cables Outer Sheath
General
Construction and Test Standards:
  • BS EN 62444:2013
  • BS6121: Part 1 type CW
Ingress Protection
  • IP66 IEC/EN 60529
MaterialNickel Plated Brass with Intumescent Rubber Seal
Operating TemperatureRange: -20°C to +70°C
Clamping ArrangementTwo part armour clamp, single compression seal
EarthElectrical continuity using the armour wire termination (SWA, AWA)
Cable Type HICWSingle Wire Armour SWA and AWA
Cable Type H1CXBraid Wire Armour, Pliable Wire Armour (PWA), Steel Tape Armour (STA)
Kit InformationIntumescent sealing material used for FireMate versions
Note: Displacement or Compression seals do not prevent cold flow. IP seal required to maintain IP66.

FireMate CW Cable Gland Datasheet
