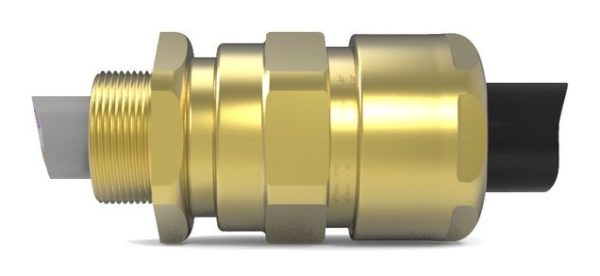

Hawke 153/RAC/L Cable Gland

POA

Heavy Industrial double compression seal cable gland for armoured, lead sheathed cable

Please enter a quantity

Share this product:

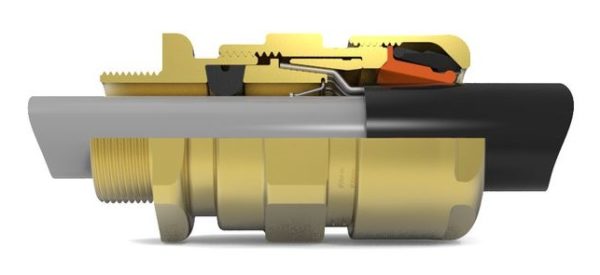

The 153/RAC/L cable gland provides two independent seals and continuity ring on armoured, lead sheathed elastomer and plastic insulated cables. The first is a seal on the inner cable sheath, with an additional IP seal on the outer sheath. This cable gland come with our Reversable Armour Clamp (RAC ring) for use with single wire armour ‘W’, wire braid ‘X’ and steel tape armour ‘Z’ elastomer and plastic insulated cables with a lead inner sheath.

  • Provides armour clamping using one clamping arrangement for all armour/braid types.
  • Provides a seal and an electrical bond on the cables lead inner sheath.
  • Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath.

Ordering Format [ Gland Type / Size / Male Thread / Female Thread / Material / Options]; Example: 153/RAC / C/ M32/ Brass/ L; Example with alternative seal option: 153/RAC / C / 1 1¼” NPT /Brass / K; Example with alternative clamping ring option: 153/RAC / C / 1 1¼” NPT /Brass / L /AR

General
Application
  • Outdoor or indoor use
  • For use with single wire armour ‘W’, wire braid ‘X’, aluminium strip armour ‘Y’ and steel tape armour ‘Z’ elastomer and plastic insulated cables with a lead inner sheath.
Ingress Protection
  • IP66
  • IP67
  • IP68
  • Deluge Protected to DTS01
MaterialBrass (standard); Nickel Plated Brass; 316 Stainless Steel or Aluminium; Brass NPT entries are nickel plated as standard
Operating Temparature Range Celcius-60°C to +80°C
SeriesHeavy Industrial Cable Glands
TypeHeavy Industrial Cable Glands
Certifications and Compliance
Certified Listed
  • EN 62444
  • BS 6121: Part 1. Type E2W, E2X, E2Y and E2Z
IP Rating
  • IP66
  • IP67
  • IP68
Industry Standard(s)
  • EN 62444
  • BS 6121: Part 1. Type E2W, E2X, E2Y and E2Z
Nema Rating4X

153/RAC/L Cable Gland Datasheet
