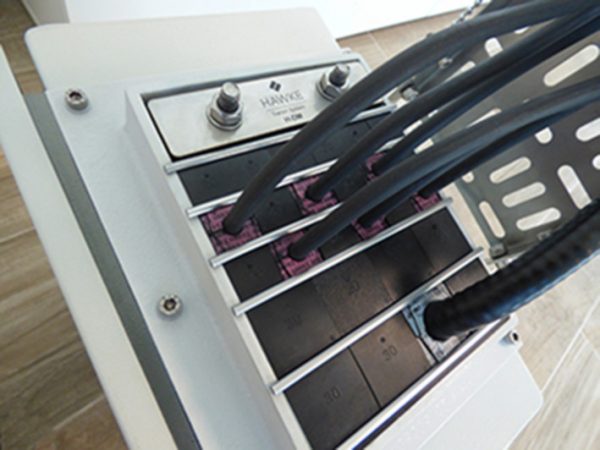

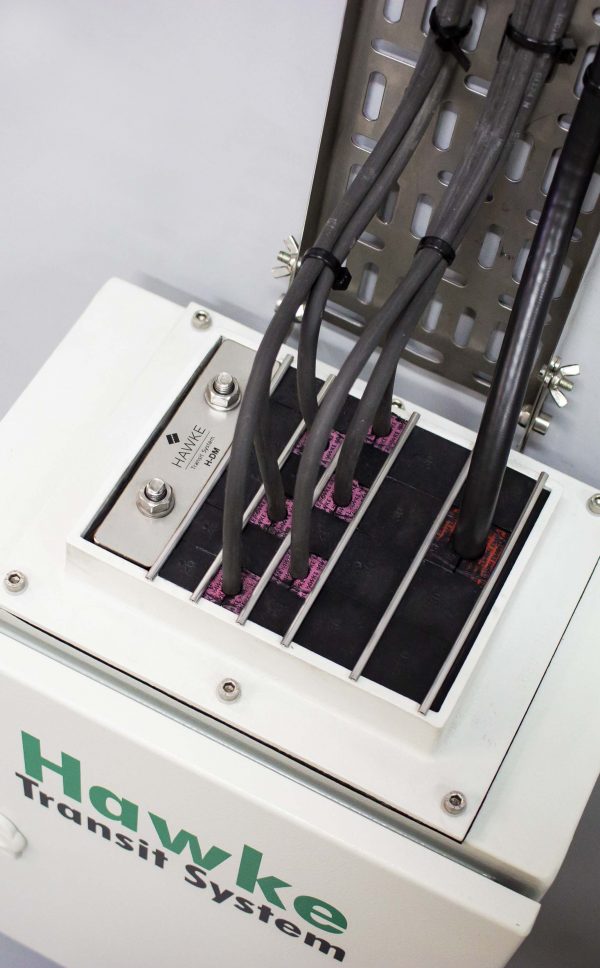

Hawke H-DM Cabinet Seal Transit Frame

H-DM frames are made in aluminum to be installed (bolted) inside or outside on enclosures, panel boards and electrical cabinets.

Clear

Share this product:

The Hawke H-DM range is a cable sealing solution that guarantees IP66 & IP67, specially designed for the sealing of electrical panel boards and cabinets. To be installed with Hawke DM series: Tolerant and blank sealing modules, compression system and stayplates.

Characteristics:

Available in three different frame sizes (4, 6.3 and 6+6)

  • To be equipped with Hawke DM cable & filler blocks
  • To be sealed using the CSDM– 120/S compression unit
  • To be installed bolted inside or outside the panel boards and cabinets



















DESCRIPTION W
[mm]
H
[mm]
x
[mm]
y
[mm]
Ф
[mm]
SEALING AREA
[mm]
WEIGHT
[kg]
H-DM 4 180 220 160 100 6.5 120×120 0.7
H-DM 6.3 180 300 160 140 6.5 120×200 0.9
H-DM 6+6 180 501 160 120 6.5 2x (120×180) 1.4

Hawke H-DM Cabinet Seal Frame Datasheet
