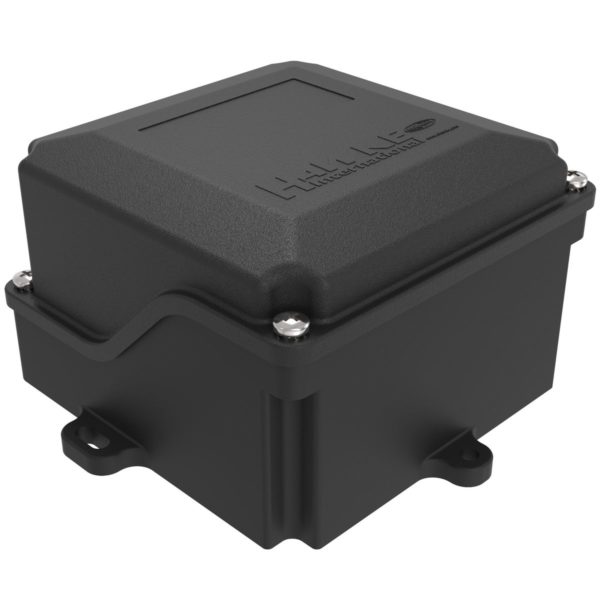

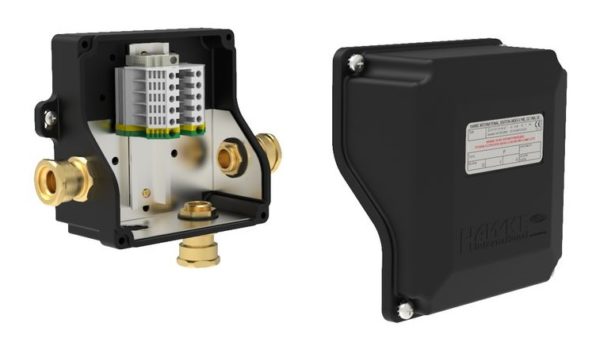

Hawke PL514

Increased Safety Thin Wall GRP Terminal Enclosure – IP66/67, ATEX/IECEX/EAC/INMETRO

Cable Systems provide an in-house Design, Assembly & Certification service for this item.

Please contact us with the following information;-

  • Size & Quantity of Terminals
  • Linking / Cross-connecting requirements (if any)
  • Size, Quantity & Position of Cable Entries

Can be back ordered

Please enter a quantity

Share this product:

Offering exceptional strength, easy installation and global certification, the PL514 is the ideal alternative to traditional Glass Reinforced Polyester Enclosures.

  • Unparalleled strength at 50% less weight that traditional Glass Reinforced Polyester enclosures
  • Complete IP66 and 4X protection
  • External mounting feet eliminate the need to remove the lid when mounting or removing the enclosure from a wall or other surface
  • Dropped lid design makes installation and inspection easier than ever before
  • Earth Continuity Plate is available in Zintec or Brass
  • Wide operating temperature

An earth terminal equal to that of the largest power terminal will be fitted.

General
Application
  • Ex II 2 GD Ex eb IIC Gb
  • Ex tb IIIC Db
EU RoHS Indicator Contact Manufacturer
Ingress Protection IP66 IP67 to IEC/EC 60529
Material Glass Reinforced Plastic (GRP) Natural Black Finish
Operating Temperature Range Celcius ‘-60°C to +75°C
Series PL Series



Certifications and Compliance
ATEX File Number Baseefa14ATEX0268X (PL513); Baseefa14ATEX0248U (ZPL513)
CSA File Number 70039997
Certification
  • ABS: 17-LD1653735-PDA
  • Bureau Veritas: 43523/A1
  • EAC: RU C-GB.AA87.B.00430Inmetro: IEx 16.0143XPESO: P457331
Certified Listed
  • ATEX
  • IEC
  • EAC
  • INMETRO
Compliance
  • Exe
  • Extb
Hazardous Rating(s)
  • Zone 1
  • Zone 2
  • Zone 21
  • Zone 22
IECEx File Number IECEx BAS 14.0123X (PL513);IECEx BAS 14.0120U (ZPL513)
Industry Standard(s)
  • IEC/EN 60079-0
  • IEC/EN 60079-7
  • IEC/EN 60079-31

Hawke PL514 Datasheet
