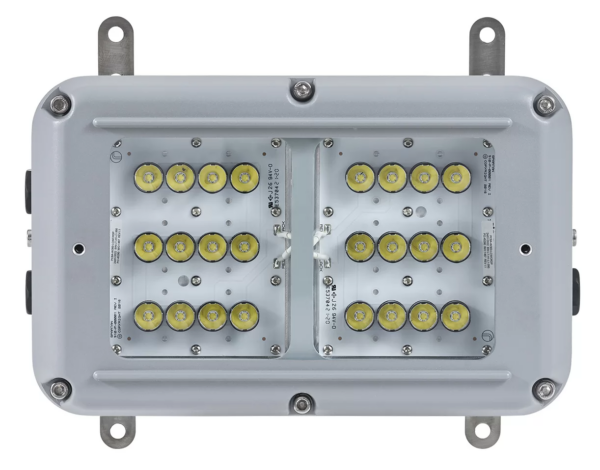

Raytec Spartan Bulkhead BL24 Zone 2/22

SPARTAN BL24, SPZ-BL24
LED Zone 2/22 Bulkhead

Emergency variants have self-testing intelligent emergency backup, Tri-colour LED system health indicator.

Emergency Duration – Up to 3hrs @ 25% power Other options available.

Please enter a quantity

Share this product:

Raytec Spartan Bulkhead BL24 Zone 2/22

The SPARTAN Bulkhead BL24 Zone 2 is designed for hazardous area environments which require high performance, reliable, White-Light illumination. Its compact, low profile design is ideal for restricted space applications and is available with emergency battery back-up. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Intelligent Emergency Variants.

Emergency variants are available to provide 3 hours of battery back-up at 25% power. The Intelligent Emergency system self-tests the battery and communicates via a tri-colour LED indicator.

Robust and Durable.

Bulkhead BL24 Zone 2 is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments.

Easy Maintenance.

A unique modular design allows quick and easy maintenance. PSUs and control gear can be accessed from the front so maintenance can be carried out while the luminaire is in-situ.

EXIT SIGN.

Raytec Spartan Bulkhead BL24 Zone 2/22 Emergency Exit

Available with an emergency exit sign kit which comes with a number of configurations to suit different installations.

LATEST STANDARDS.

All SPARTAN products are certified to the latest editions of the standards, including UKCA.

Standard Part Number Configurations
Part Number Description
SPZ-BL24W/EXIT/EMX EXEC LED EXIT BULKHEAD-EMX100
SPZ-BL24W12050 EXN LED BULKHEAD 120X50
SPZ-BL24W12050-EMX25 EXN.EM.BULKHEAD 120X50 3HR-EMX
SPZ-BL24W120120 EXN LED BULKHEAD 120X120
SPZ-BL24W120120EMX25 EXN EM.BULKHEAD 120X120 3H-EMX
BL24 BL24-HO BL24 EMX25 BL24-HO EMX25
Input 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC (LV), 12V AC/DC (ELV) 110-254V 50/60Hz AC only
Power 20W 34W 24W 37W
Termination Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor >0.9
Cable Entries 4xM20 as standard (other entries available upon request), dispatched complete with three ATEX/UKEX/IEC Ex approved blanking plug



BL24 BL24-HO BL24 EMX25 BL24-HO EMX25
Burning Position Universal
IP Rating IP66 & IP67
Temperature Range – 50°C to +55°C – 20°C to +46°C
Weight 5kg (11.0Ibs) 6kg (13.2Ibs)
Enclosure Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit Colour Silver (RAL 9006)
Mounting Comes complete with stainless steel brackets. Other options available
Emergency Backup
BL24 EMX25 BL24 EMX25
Function Self-testing intelligent emergency backup
System health indicator Tri-colour LED indicator
Emergency Duration Up to 3hrs @ 25% power Other options available
Emergency Battery 2.5 Ah
Emergency Charge Time 20 hours
BL24 BL24-HO BL24 EMX25 BL24-HO EMX25
ATEX Rating ATEX UKCA and IEC Ex rated for Gas and Dust
Hazardous Area Rating Zone 2 (Gas), Zone 22 (Dust)
Certificates CML17ATEX4231, IECEx CML17.0135 & CML17UKEX4106
Gas II 3 GD
Ex ec mc IIC T4 Gc
Ta= -50°C to +55°C
(-20°C to +55°C for emergency variants)
Dust Ex tb IIIC T98°C Db
IP66 & IP67 – Ta -50°C to +55°C
(-20°C to +55°C emergency variants)
ABS Certificate # ABS Certificate # 20-1990083-PDA
BL24 BL24-HO BL24 EMX25 BL24-HO EMX25
Beam Patterns – Circular 10°x10°, 30°x30°, 50°x50°, 80°x80° or 120°x120° (10×10 option can be upgraded to VARIO technology)
Beam Patterns – Elliptical 35°x10°, 60°x25°, 80°x30° or 120°x50° (VARIO)
Lumen Output 2,500lm (circular beam patterns)
2,250lm (elliptical beam patterns)
4,650lm (circular beam patterns)
4,100lm (elliptical beam patterns)
2,500lm (circular beam patterns)
2,250lm (elliptical beam patterns)
4,650lm (circular beam patterns)
4,100lm (elliptical beam patterns)
LED Type Platinum Elite SMT LEDs
Number of LEDs 24
CRI 80+
Colour Temperature 6500K standard

Raytec Spartan Bulkhead BL24 Zone 2/22 Datasheet
