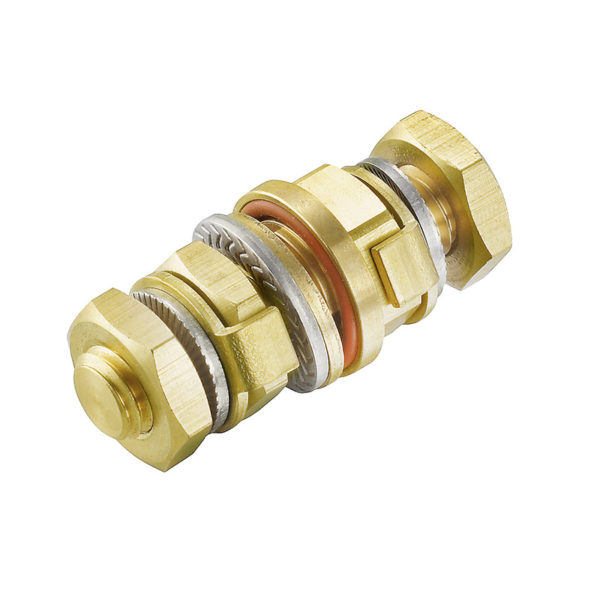

Weidmuller Klippon® POK Earthing Stud

Internal / External Earth Stud available in Brass & Stainless Steel materials for the Weidmuller Klippon® POK range of GRP enclosures.

Clear

Share this product:

Klippon® POK earthing stud

The Klippon® POK enclosure range is made from a high-quality glass fibre reinforced polyester and is ideal for applications and environments where corrosion resistance, impact resistance and a high IP protection class are a requirement.

Key features of the extensive product range:

  • Available in 17 sizes
  • Two standard finishes (colours): grey (similar to RAL 7001 for industrial use) and black (similar to RAL 9011 for harsh environments, Ex)
  • Cover with stainless steel screws in cross-head / slotted design
  • Moulded gasket made of silicone or chloroprene
  • Fixing holes outside the sealed area to ensure high ingress protection of IP66
  • Impact resistance up to 7 Joules
  • Mounting directly in the enclosure or using an internal mounting plate
  • Direct wall mounting possible using fixing holes or mounting feet
  • Fastening thread to attach mounting rails and plates
  • Up to E60 fire rating dependent on the configuration

Cable Systems can manufacture and supply this enclosure to match customer specifications – fitted with all necessary terminals and cable glands.

Ordering data

Product code Description Dimensions
1277250000 PEBZ M6 BR SET (Brass) Height: 12.3 mm, Width: 12.3 mm, Depth: 42 mm, Material: Brass
1283430000 PEBZ M6 S4 SET (316L Stainless Steel) Height: 12.3 mm, Width: 12.3 mm, Depth: 42 mm, Material: Stainless steel 1.4404 (316L)
1277220000 PEBZ M10 BR SET (Brass) Height: 21 mm, Width: 21 mm, Depth: 48.7 mm, Material: Brass
1283440000 PEBZ M10 S4 SET (316L Stainless Steel) Height: 21 mm, Width: 21 mm, Depth: 48.7 mm, Material: Stainless steel 1.4404 (316L)

Download Weidmuller Klippon POK Ex Mini Catalogue
