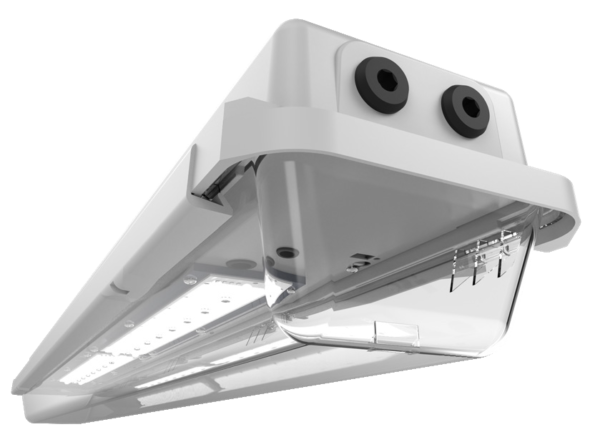

The Protecta IV LED linear delivers next generation LED efficiency and photometric performance whilst maintaining the recognised benefits of our globally tried and trusted enclosure.
Delivering up to 149 lumens per watt the Protecta IV is now at the forefront of energy efficiency expected of a modern Zone 1 LED lighting fixture. With expected useful life to 70% of the initial lumens (L70) an impressive >200,000 hours at 25°C, coupled with a system life of >125,000 hours at 25°C the Protecta IV truly delivers an effective long term solution for Zone 1 lighting requirements.
Mounting Options
Ceiling. Wall. Suspended. Pole.
| Std. Cat No. | Delivered Output | Power Consumption | Tclass | T°C (Dust) | Ambient °C | Weight |
| PR4B/02L/LE | 2616 lm | 18W | T5 | 100 | -40 to +60 | 7.1kg |
| PR4B/05L/LE/2FT | 5110 lm | 35W | T5 | 100 | -40 to +60 | 7.1kg |
| PR4B/05L/LE | 5245 lm | 35W | T5 | 100 | -40 to +60 | 8.2kg |
| PR4B/07L/LE | 7102 lm | 53W | T5 | 100 | -40 to +60 | 8.2kg |
| PR4B/02L/LE/EM | 2616 lm | 20W | T5 | 100 | -25 to +60 | 7.6kg |
| PR4B/05L/LE/EM/2FT | 5110 lm | 37W | T5 | 100 | -25 to +60 | 7.6kg |
| PR4B/05L/LE/EM | 5245 lm | 37W | T5 | 100 | -25 to +60 | 8.7kg |
| PR4B/07L/LE/EM | 7102 lm | 55W | T5 | 100 | -25 to +60 | 8.7kg |
| Options – Suffix to Catalogue No. | |||
| /M25 | M25 cable entries | /3H | 3 hour battery duration (02L = 25% output; 05L = 12.5% output) [Standard on ASW or ASL versions] |
| /LBE | Looping both ends | /4K | 4000K (Neutral White) LED Strips |
| /EL | Extra live termination facility (to match emergency circuit) |
/SC | Screwed connection terminal block (up to 6mm² conductors) |
| /BP | 3x Ex nickel plated brass blanking plugs | /NST | Non Self Test [Emergency version only] |
| /ASL | Asymmetric along length optic | /ASW | Asymmetric along width optic |
| Accessories order separately | |
| Order Code | |
| Pole mounting bracket assembly (38-42mm diameter poles) | SPOL4-100001 |
| Pole mounting bracket assembly (48-52mm diameter poles) | SPOL4-100002 |
| Pole mounting bracket assembly (58-62mm diameter poles) | SPOL4-100003 |
| Hook type ceiling bracket assembly | SPRO4-0005 |
| Flush mounted wall bracket assembly | SPRO4-0006 |
| Ceiling bracket assembly | SPRO4-0002 |
| Standard 2ft wall mounting outreach bracket (use with SPOL4-100001) | NPRO4-0008 |
| Standard 4ft wall mounting outreach bracket (use with SPOL4-100001) | NPRO4-0012 |
| Eyebolt mounting assembly | SPRO5-0005 |
