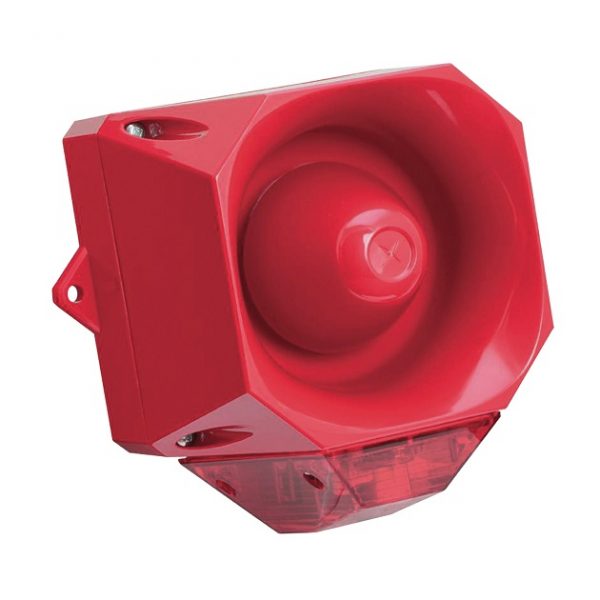

FHF AXL05 Weatherproof Sounder / 2.5 Joule Beacon Combination unit

Loud signalling devices with 32 different signals and 2 Joule strobe light.

Clear

Share this product:

Overview

The combination consists of a loud, compact signalling device with good directivity and a 2.5 Joule strobe light. The optical and acoustic signals can be controlled separately from each other. The IP 66 housing qualifies the device for use both indoors and outdoors.

Design
The housing consists of ABS/Polycarbonate. The sounders are equipped with 32 different tones and are therefore suitable for universal use. The signal tone is selected with a DIP switch. All versions are designed for a two-stage alarm. The strobe light is controlled via a separate connection terminal.

  • AC and DC versions
  • High volume up to 112 dB(A)
  • Low current consumption
  • Choice of 32 different signal tones
  • Strobe light 2.5 Joule
  • Robust and reliable
General
Area classification Weatherproof
Operating temperature -25°C to +70°C
Ingress protection IP66
Material Impact resistant ABS
Weight 0.8kg
Voltage 9-60Vdc, 115-230Vac
Sound output Max: 112dB, 1m (±3dB)
Tones 32
Stages 2
Light source Xenon
Options Lens colour

FHF AXL05 Weatherproof Sounder / 2.5 Joule Beacon Combination unit Datasheet
