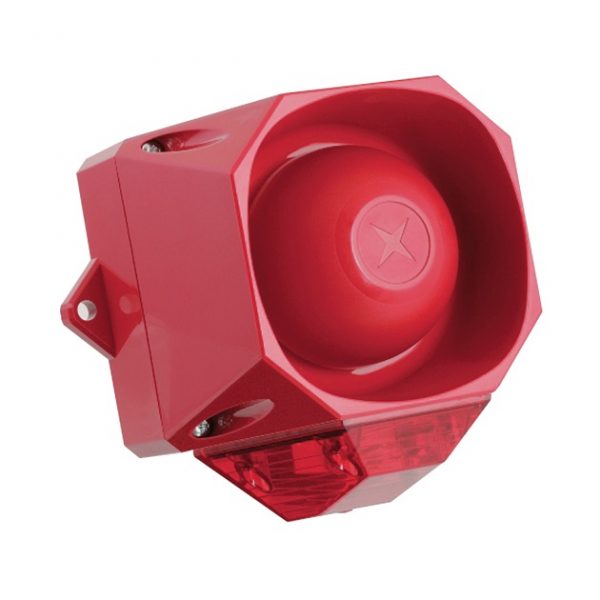

FHF AXL04 Weatherproof Sounder / 2 Joule Combination unit

Loud signalling devices with 32 different signals and 2 Joule strobe light.

Clear

Share this product:

Overview

The AXL04 is very versatile in its application. The Sounder-strobe-light combination AXL04 is often used in burglar and fire alarm systems, office building, hospitals or airports.

Design
Thanks to its housing, the AXL04 is suitable for use both indoors and outdoors. The device generates 32 different signal tones, which can be set individually by the user. Flash energy 2 Joule. The optical and acoustical signal can be controlled separately of each other. The design of the housing enables simply installation.

  • Volume: approx. 105 dB(A)
  • 2 stage alarm
  • Flash energy 2 Joule
  • Low current consumption 3 Simple Installation
General
Area classificationWeatherproof
Operating temperature-25°C to +70°C
Ingress protectionIP66
MaterialImpact resistant ABS
Weight0.5kg
Voltage9-60Vdc, 115-230Vac
Sound outputMax: 105dB, 1m (±3dB)
Tones32
Stages2
Light sourceXenon
OptionsLens colour

FHF AXL04 Weatherproof Sounder / 2 Joule Combination unit Datasheet
