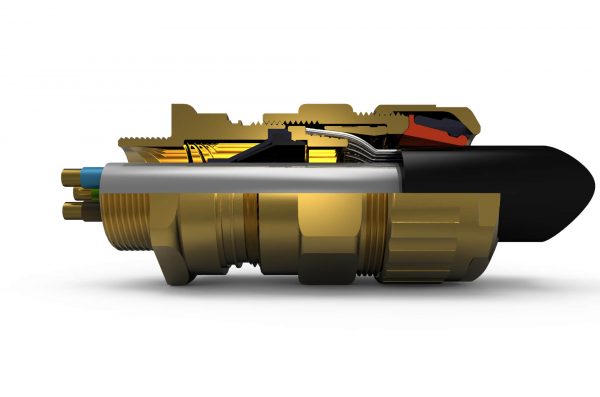

Hawke 453/UNIV Group I Mining Cable Gland

Flameproof Exdb, Increased Safety Exeb, ATEX/IECEx/EAC

Can be back ordered

Please enter a quantity

Share this product:

The 453/UNIV cable gland provides two independent seals on armoured, elastomer and plastic insulated cables susceptible to damage relating to cold flow. The first is a flameproof diaphragm seal on the inner cable sheath, the second an IP seal on the outer sheath. This cable gland comes with our Reversable Armour Clamp (RAC ring) for use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables. The cable gland is certified Exdb and Exeb and is suitable for installation in mining applications.

  • Provides armour clamping using one clamping arrangement for all armour/braid types.
  • Provides a diaphragm seal on the cables inner sheath which will not damage cable that has ‘cold flow’ characteristics.
  • Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath.
  • Manufactured in Brass (standard), Nickel Plated Brass or 316 Stainless Steel. Brass NPT entries are nickel plated as standard.
  • Available in sizes Os to F.

Ordering Format [ Gland Type / Size / Thread / Material / Options ] Example: 453/UNIV / C / M32 / Brass. Example with Alternative Clamping Ring option: 453/UNIV / C / M32 /Brass / AR.

General
Application Suitable for use in mining applications.
Ingress Protection
  • IP66
  • IP67
  • IP68 (30 metres for 7 days) *additional installation procedures required
Material Brass (standard); Nickel Plated Brass; 316 Stainless Steel or Aluminium; Brass NPT entries are nickel plated as standard
Operating Temparature Range Celcius -60°C to +80°C
Series Group I Mining Cable Glands
Certifications and Compliance
Certified Listed
  • ATEX
  • IECEx
  • EAC
Hazardous Rating(s)
  • Exdb I Mb
  • Exeb I Mb
Industry Standard(s)
  • IEC/EN 60079-0
  • IEC/EN 60079-1
  • IEC/EN 60079-7

453/UNIV Group I Mining Cable Gland Datasheet
