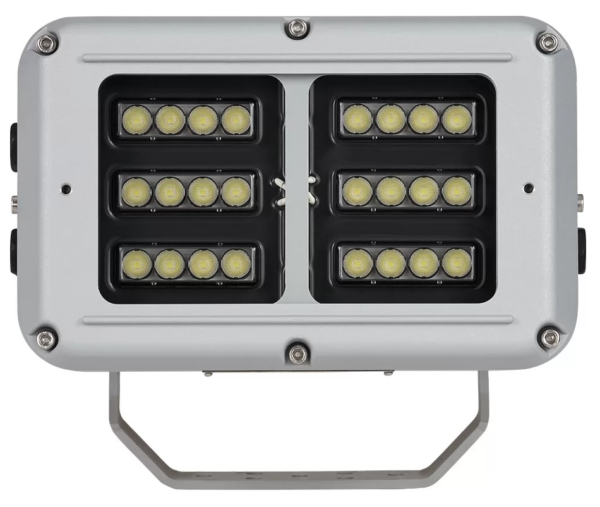

Raytec Spartan Flood BL24 Zone 1/21

SPARTAN BL24, SPX-BL24
Zone 1/21, 2,500 – 4,250lm

Raytec are specialists in LEDs and all our products are designed around LEDs with bespoke housing for optimum performance and reliability.

Please enter a quantity

Share this product:

Raytec Spartan Flood BL24 Zone 1/21

The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. Available with emergency battery backup and delivering 4,250 lumens, the Flood BL24 is ideal for illuminating smaller areas. It uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Intelligent Emergency Variants.

Emergency variants have a self-test function to automatically maintain the battery’s health. The batteries are contained within the existing housing to provide a compact solution.

Robust and Durable.

Flood BL24 is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

ADJUSTABLE BRACKETRY

Supplied complete with an adjustable stirrup bracket which allows full rotation so the ideal configuration can be achieved.

LATEST STANDARDS.

All SPARTAN products are certified to the latest editions of the standards, including UKCA.

BL24 BL24-HO BL24 EMX25 BL24-HO EMX25
Input 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC (LV), 12V AC/DC (ELV) 110-254V 50/60Hz AC only
Power 20W 34W 24W 37W
Termination Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor >0.9
Cable Entries 4xM20 as standard (other entries available upon request), dispatched complete with three ATEX/UKEX/IEC Ex approved blanking plug



BL24 BL24-HO BL24 EMX25 BL24-HO EMX25
Burning Position Universal
IP Rating IP66 & IP67
Temperature Range – 50°C to +55°C – 20°C to +46°C
Weight 5kg (11.0Ibs) 6kg (13.2Ibs)
Enclosure Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit Colour Silver (RAL 9006)
Mounting Comes complete with stainless steel brackets. Other options available
Emergency Backup
BL24 EMX25 BL24 EMX25
Function Self-testing intelligent emergency backup
System health indicator Tri-colour LED indicator
Emergency Duration Up to 3hrs @ 25% power Other options available
Emergency Battery 2.5 Ah
Emergency Charge Time 20 hours
BL24 BL24-HO BL24 EMX25 BL24-HO EMX25
ATEX Rating ATEX UKCA and IEC Ex rated for Gas and Dust
Hazardous Area Rating Zone 1 (Gas), Zone 21(Dust)
Certificates CML 13ATEX3007, IEC Ex CML14.0001 & CML21UKEX3099
Gas II 2 G D, Ex eb mb IIC T4 Gb, Ta= Up to -50°C to +55°C (-20°C to +46°C for emergency variants
Dust Ex tb IIIC T98°C Db, Ta= Up to -50°C to +55°C (-20°C to +46°C for emergency variants), IP66 & IP67
ABS Certificate # ABS Certificate # 20-1990083-PDA
BL24 BL24-HO BL24 EMX25 BL24-HO EMX25
Beam Patterns – Circular 10°x10°, 30°x30°, 50°x50°, 80°x80° or 120°x120° (10×10 option can be upgraded to VARIO technology)
Beam Patterns – Elliptical 35°x10°, 60°x25°, 80°x30° or 120°x50° (VARIO)
Lumen Output 2,500 lm – circular beam patterns 2,250 lm – elliptical beam patterns (VARIO) 4,250 lm – circular beam patterns 4,000 lm – elliptical beam patterns (VARIO) 2,500 lm – circular beam patterns 2,250 lm – elliptical beam patterns (VARIO) 4,250 lm – circular beam patterns 4,000 lm – elliptical beam patterns (VARIO)
LED Type Platinum Elite SMT LEDs
Number of LEDs 24
CRI 80+
Colour Temperature 6500K standard

Raytec Spartan Flood BL24 Zone 1/21 Datasheet
