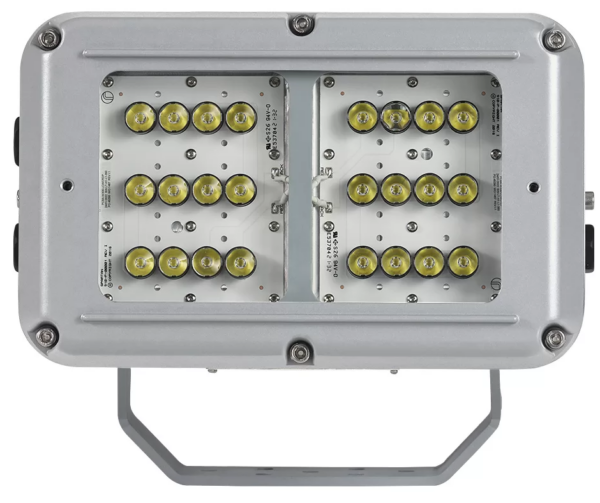

Raytec Spartan Flood BL24 Zone 2/22

SPARTAN BL24, SPZ-BL24
Zone 2/22, 2,750 – 4,650lm

Available in a range of different beam patterns, both circular and elliptical.

Please enter a quantity

Share this product:

Raytec Spartan Flood BL24 Zone 2/22

The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. The flood range is available with emergency battery backup and delivering 4,650 lumens, the BL24 Flood is ideal for illuminating smaller areas. It uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Intelligent Emergency Variants.

Emergency variants have a self-test function to automatically maintain the battery’s health. The batteries are contained within the existing housing to provide a compact solution.

Robust and Durable.

Bulkhead is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

ADJUSTABLE BRACKETRY.



Supplied complete with an adjustable stirrup bracket which allows full rotation so the ideal configuration can be achieved.

LATEST STANDARDS.

All SPARTAN products are certified to the latest editions of the standards, including UKCA.

BL24 BL24-HO BL24 Emergency Backup BL24-HO Emergency Backup
Input 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC (LV), 12V AC/DC (ELV) 110-254V 50/60Hz AC only
Power 20W 34W 24W 37W
Termination Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor >0.9
Cable Entries 4xM20 as standard (other entries available upon request), dispatched complete with three ATEX/UKEX/IEC Ex approved blanking plug



BL24 BL24-HO BL24 Emergency Backup BL24-HO Emergency Backup
Burning Position Universal
IP Rating IP66 & IP67
Temperature Range – 50°C to +55°C – 20°C to +46°C
Weight 5kg (11.0Ibs) 6kg (13.2Ibs)
Enclosure Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit Colour Silver (RAL 9006)
Mounting Comes complete with stainless steel brackets. Other options available
Emergency Backup
BL24 Emergency BL24-HO Emergency Backup
Function Self-testing intelligent emergency backup
System health indicator Tri-colour LED indicator
Emergency Duration Up to 3hrs @ 25% power Other options available
Emergency Battery 2.5 Ah
Emergency Charge Time 20 hours
BL24 BL24-HO BL24 Emergency Backup BL24-HO Emergency Backup
ATEX Rating ATEX UKCA and IEC Ex rated for Gas and Dust
Hazardous Area Rating Zone 2 (Gas), Zone 22 (Dust)
Certificates CML17ATEX4231, IECEx CML17.0135 & CML17UKEX4106
Gas II 3 GD
Ex ec mc IIC T4 Gc
Ta= -50°C to +55°C
(-20°C to +55°C for emergency variants)
Dust Ex tb IIIC T98°C Db
IP66 & IP67 – Ta -50°C to +55°C
(-20°C to +55°C emergency variants)
ABS Certificate # ABS Certificate # 20-1990083-PDA
BL24 BL24-HO BL24 Emergency Backup BL24-HO Emergency Backup
Beam Patterns – Circular 10°x10°, 30°x30°, 50°x50°, 80°x80° or 120°x120° (10×10 option can be upgraded to VARIO technology)
Beam Patterns – Elliptical 35°x10°, 60°x25°, 80°x30° or 120°x50° (VARIO)
Lumen Output 2,500lm (circular beam patterns)
2,250lm (elliptical beam patterns)
4,650lm (circular beam patterns)
4,100lm (elliptical beam patterns)
2,500lm (circular beam patterns)
2,250lm (elliptical beam patterns)
4,650lm (circular beam patterns)
4,100lm (elliptical beam patterns)
LED Type Platinum Elite SMT LEDs
Number of LEDs 24
CRI 80+
Colour Temperature 6500K standard

Raytec Spartan Flood BL24 Zone 2/22 Datasheet
