Kopex EXLHC High Temperature, High Flexibility Conduit

High temperature, high flexibility, Galvanised steel core, Ex e approved system

Clear

Share this product:

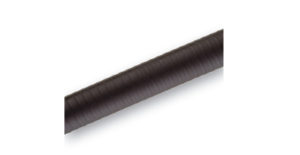

EXLHC range – High temperature, high flexibility [Galvanised steel core]

Conduit for high temperature applications, where a high degree of flexibility is required. Made from galvanised core with a thermoplastic rubber coating.

Product approvals

  • ATEX – Baseefa 15ATEX0175X
  • IECEx – IECEx BAS 15.0130X
  • II 2 GD, Ex eb IIC Gb Ex tb IIIC Db
  • -35°C to +105°C
  • IEC 61386 compliant

General Information

Part No

Size

Bore

GID

10m

20m

30m

EXLHC03* 16mm 12.5mm 7TCA297120R0102 7TCA297120R0103
EXLHC04* 20mm 16mm 7TCA297120R0104 7TCA297120R0105
EXLHC05* 25mm 21mm 7TCA297120R0106 7TCA297120R0107
EXLHC06* 32mm 26.4mm 7TCA297120R0108 7TCA297120R0109
EXLHC07* 40mm 35.3mm 7TCA297120R0110 7TCA297120R0111
EXLHC08* 50mm 40.4mm 7TCA297120R0112 7TCA297120R0113
EXLHC09* 63mm 51.6mm 7TCA297120R0114 7TCA297120R0115

Kopex EXLHC High Temperature, High Flexibility Conduit Datasheet
