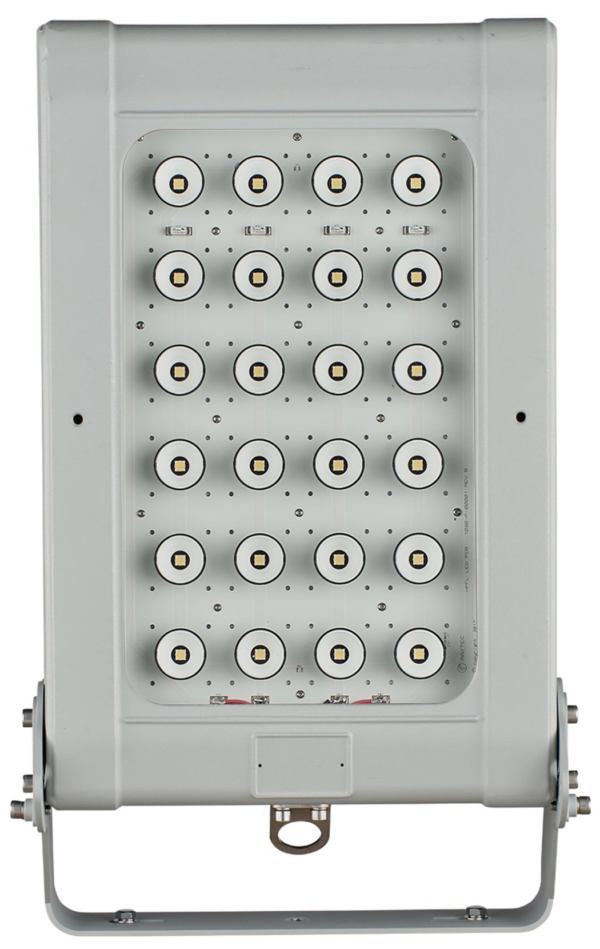

Raytec Spartan High-Power Flood Zone 2/22

SPARTAN High Power Flood, SPZ-HPFL

Zone 2/22, 20,000lm – 34,000lm

High lumen output up to 34,000 lumens and a range of beam patterns to effectively light up large open areas such as oil rigs.

Please enter a quantity

Share this product:

Raytec Spartan High-Power Flood Zone 2/22

The SPARTAN High Power Flood Light range is designed to illuminate large, open spaces within hazardous area environments. Available with a range of different outputs from 20,000 to 34,000 lumens, the High Power Flood uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Power and Performance.

High Power Flood Light – High lumen output up to 34,000 lumens and a range of beam patterns to effectively light up large open areas such as oil rigs.

SPARTAN ATEX LED Floodlight – High lumen output from 5,000 to 15,000 lumens, along with a range of different beam patterns to effectively light up large open areas such as oil rigs.

Retrofittable and Modular.

Designed to directly replace traditional discharge light sources up to 400W SON. The modular design allows easy access to key components and the ability to mount the PSU remotely

EASY TO MAINTAIN.

The PSUs and control gear are located in an easy to access rear compartment for straightforward maintenance. A SMART access wiring system allows for safe and efficient installation.

HPFL 20K HPFL 25K HPFL 30K
Input 150-264V 50/60Hz AC/DC
(110V variant available – please contact Raytec)
Power 200W 250W 300W
Termination Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor >0.95
Cable Entries 2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex/UKEX approved blanking plug



HPFL 20K HPFL 25K HPFL 30K
Burning Position Universal
IP Rating IP66
Temperature Range -50°C to +50°C
Weight 23.5kg (51.8Ibs)
Enclosure Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit Colour Silver (RAL 9006)
Mounting Stirrup bracket
HPFL 20K HPFL 25K HPFL 30K
ATEX Rating ATEX, UKEX and IEC Ex rated for Gas and Dust
Hazardous Area Rating Zone 2 – Gas and Dust
Certificates CML 17ATEX 4149
IEC Ex CML 17.0074
CML21UKEX4101
Gas II 3 G D
Ex ec nR IIC T4 Gc
Ta= -50°C to +50°C
Dust Ex tc IIIC T104°C Dc
Ta+-50°C to +50°C IP66
ABS Certificate # ABS Certificate # 20-1990083-PDA
HPFL 20K HPFL 25K HPFL 30K
Beam Patterns 30° x 30° or 60° x 60° or 90° x 90°
Lumen Output 22,971lm 28,713lm 34,456lm
LED Type Platinum Elite SMT LEDs
No. of LEDs 24
CRI 70+
Colour Temperature 5,700K

Raytec Spartan High-Power Flood Zone 2/22 Datasheet
