BICC Prysmian Bicon CW Cable Gland Kit

Indoor / Outdoor Single Compression Industrial Cable Gland

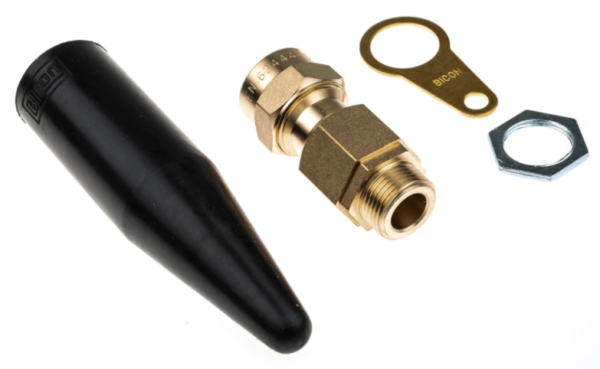

Kit comprises: BW gland, brass earth tag, zinc plated steel locknut and shroud

Clear

Share this product:

Bicon CW Brass Indoor Cable Gland and Accessories

CW Cable Glands are for use with all steel wire armoured cables (SWA).

  • Indoor & outdoor type for SWA cable
  • Brass indoor & outdoor gland and accessories
  • For galvanized-steel single-wire armour plastic or rubber sheathed cables
  • Suitable for most climatic conditions, weatherproof and waterproof
  • Three part armour lock with separate armour locking ring, ideal for checking electrical continuity
  • CuZn39Pb3 brass alloy used for guaranteed strength and performance
  • Complies with BS EN 50262 & BS 6121-1: 1989
  • Gland rated to IP66 with use of suitable sealing washer or thread sealant at gland interface
  • Service temperature range -20°C to +90°C
  • Metric & NPT versions available
rysmian Bicon Reference Size Cable Dimensions (mm) CW Cable Gland Dimensions (mm)
Under Armour Max ∅ (A) Cable Diameter ∅ (B) mm Entry Thread (D) Thread Length (E) Length (F) Hexagon
Standard Nickel Plated Metric
/NPT		 Min Max A/F (G) A/C (H)
KA419-51 KA419-51V 16 8.6 8.0 13.2 M16 x 1.5 10 44 20.8 23.8
KA419-71 KA419-71V 20SS 8.6 8.0 13.2 M20 x 1.5 10 44 23.4 26.7
KA419-52 KA419-52V 20S 11.6 8.0 15.8 M20 x 1.5 10 46 25.7 29.2
KA419-53 KA419-53V 20 13.9 11.7 20.8 M20 x 1.5 10 46 30.5 34
KA419-55 KA419-55V 25 19.9 17.0 27.2 M25 x 1.5 10 51 37.6 42.2
KA419-56 KA419-56V 32 26.2 23.5 33.5 M32 x 1.5 10 56 47.3 53.6
KA419-57 KA419-57V 40 32.1 29.0 39.9 M40 x 1.5 15 59 56.4 61.5
KA419-58 KA419-58V 50S 38.1 38.0 46.2 M50 x 1.5 15 64 65.5 72.1
KA419-59 KA419-59V 50 44.0 39.5 52.6 M50 x 1.5 15 64 70.1 77.2
KA419-61 KA419-61V 63 55.9 51.3 65.3 M63 x 1.5 15 67 80 87.4
KA419-63 KA409-63 75 67.9 62.5 78.0 M75 x 1.5 15 76 98.8 109.2
KA419-64 KA419-64V 85 74 68 88 M85 x 2.0 20 110 115 126
KA419-65 KA419-65V 90 79 79 90 M90 x 2.0 20 136 ∅114
KA419-66 KA419-66V 100 89 89 99 M100 x 2.0 20 136 ∅132.5
KA419-67 KA419-67V 110 99.5 99.5 112.5 M110 x 2.0 20 136 ∅ 138.5
– 419NP-10V 1″ – 20S 11.6 8.0 15.8 1″ NPT 17.5 46 36.0 40.0
– 419NP-08V 3/4″ – 20 13.9 11.7 20.8 3/4″ NPT 14.0 46 30.5 34
– 419NP-12V 1″-
25		 19.9 17.0 27.2 1″ NPT 17.5 51 37.6 42.2
– 419NP-16V 1
1/4″ – 32		 26.2 23.5 33.5 1 1/4″ NPT 18 56 47.3 53.6
– 419NP-25V 2
1/2″ – 50		 44.0 39.5 52.6 2 1/2″ NPT 29 64 80 87.4
– 419NP-26V 2
1/2″ – 63		 55.9 51.3 65.3 2 1/2″ NPT 29 67 80 87.4



Download BICC CW Datasheet
