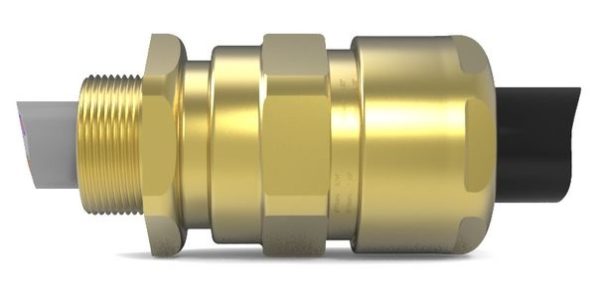

Hawke 153/RAC Cable Gland

Heavy Industrial double compression seal cable gland for armoured cable

Clear

Share this product:

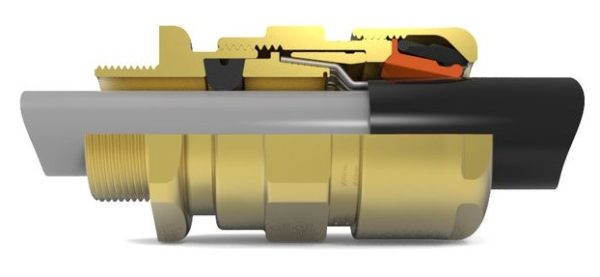

The 153/RAC cable gland provides two independent seals on armoured elastomer and plastic insulated cables. The first is a seal on the inner cable sheath, with an additional IP seal on the outer sheath. This cable gland come with our Reversable Armour Clamp (RAC ring) for use with single wire armour ‘W’, wire braid ‘X’ and steel tape armour ‘Z’ elastomer and plastic insulated cables.

  • Provides armour clamping using one clamping arrangement for all armour/braid types.
  • Provides a seal on the cables inner sheath.
  • Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath.

Ordering Format [ Gland Type / Size / Male Thread / Female Thread / Material / Options]; Example: 153/RAC / C/ M32/ Brass; Example with alternative seal option: 153/RAC / C / 1 1¼” NPT /Brass / S; 153/RAC / C / 1 1¼” NPT /Brass / AR

General
Application
  • Outdoor or indoor use
  • For use with single wire armour ‘W’, wire braid ‘X’, aluminium strip armour ‘Y’ and steel tape armour ‘Z’ elastomer and plastic insulated cables.
Ingress Protection
  • IP66
  • IP67
  • IP68
  • Deluge Protected to DTS01
MaterialBrass (standard); Nickel Plated Brass; 316 Stainless Steel or Aluminium; Brass NPT entries are nickel plated as standard
Operating Temparature Range Celcius-60°C to +80°C
SeriesHeavy Industrial Cable Glands
TypeHeavy Industrial Cable Glands
Certifications and Compliance
Certified Listed
  • EN 62444
  • BS 6121: Part 1. Type E1W, E1X, E1Y and E1Z
IP Rating
  • IP66
  • IP67
  • IP68
Industry Standard(s)
  • EN 62444
  • BS 6121: Part 1. Type E1W, E1X, E1Y and E1Z
Nema Rating4X

153/RAC Cable Gland Datasheet
