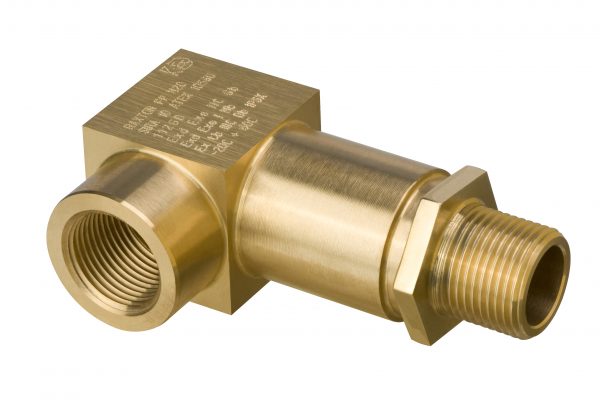

Raxton FP Male to Female 90º Right Angle Swivel Adaptors

90º Right Angle Swivel Adaptors ATEX/IECEx/INMETRO Exd/Exe

Clear

Share this product:

Overview

The Raxton Swivel Adaptor has the advantages of the standard inline and fixed 90º Adaptors, with the addition of the ‘swivel’ feature.

The 90º Swivel Adaptor (Types FP, FQ, FR) has been designed to allow a full 360º choice of cable entry/exit positions. This enables the installer to run the cable in any direction which greatly improves ease of installation in confined or difficult situations. The cable entry/exit can be aligned without the over or under torque compromise imposed by the direction of cable. The temperature range of -50ºC to +230ºC is governed by the use of an internal silicone ‘O’ ring which maintains the integrity of the product ensuring that it conforms to the over pressure requirement of the latest standard.

Certifications and Compliances
Code of Protection Categories
ATEX: I M2, Ex d IMb, Ex e I Mb, (not aluminium) or IIGd Ex d IIC Gb,
Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex d Ex e IIC Gb, Ex d Ex e IM (not aluminium),
Ex tb IIIC Db, IP 6X
INMETRO: Ex d IIC Gb, Ex e IIC Gb, Ex d I Mb, Ex e Mb, Ex tb IIIC Db IP6X

Compliance Standards
ATEX: EN 60079-0, EN60079-1, EN 60079-7, EN 60079-31
INMETRO: ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1,
ABNT NBR IEC 60079-7, ABNT NBR IEC 60079-31
IECEx: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31

Certificate Details
ATEX: Sira 10ATEX1056U, ITS16ATEX101337U
IECEx: IECEx SIR 10.0025U, IECEx ITS16.0010U
INMETRO: NCC 12.0764X

TEMPERATURE
Temperature range: -20°C to +60°C Exd, -50°C to +200°C Exe

Ingress Protection (IP):
Independently tested to IP66 / IP68 when fitted in accordance to
manufacturer’s instructions.
