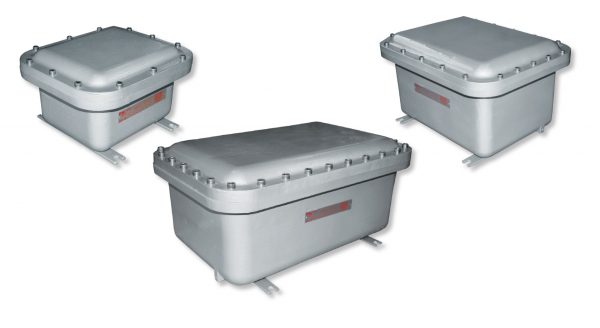

Bartec Feam EJB-UL INX Stainless Steel Enclosures

Ex db IIB+H2 Zone 1/2-21/22 / Atex / IECEx / Inmetro / EAC / RMRS / Rina / NEC 505

Cable Systems provide an in-house Design, Assembly & Certification service for this item.




Please enter a quantity

Share this product:

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)

Classification: Group II – Category 2G 2D

Mechanical characteristics

Body/cover – marine grade copper free aluminium light alloy / stainless steel AISI 316L

Screws – stainless steel – internal / external

Internal mounting plate – hot dip galvanized steel / aluminum

Fixing – galvanized steel stirrups th.10mm

Gaskets – O-RING silicon rubber on cover (option on request)

On Request Accessories :

  • External epoxy painting (any colours)
  • Internal anticondensate painting orange RAL-2004
  • O-Ring gaskets on cover
  • Glass windows on cover
  • Drain and breather valves
  • Stainless steel hinges
TERMINAL BOARD / POWER UNITS CONTROL AND SIGNALLING UNITS
NEC – NEMA 4, 7, 9
INSTALLATION Class I – Groups B, C, e D
Class II – Groups E, F, e G
Class III
PROTECTION 4 , 7 BCD , 9 EFG
PROTECTION DEGREE IP66
AMBIENT TEMPERATURE -20°C ÷ +40°C
CERTIFICATION AND COMPLIANCES UL Standard 1203 – 4° Ed. (15 Sett. 2006)
Explosion-Proof / Dust-Ignition-Proof
Electrical Equipment for Use in Hazardous (Classified) Locations
Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION ( II 2 G) Ex db IIB+H2 T6…T3
( II 2 G) Ex db [ia/ib] IIB+H2 T6…T3
( II 2 D) Ex tb IIIC T85°C…T150°C
RULES OF COMPLIANCE EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-11; EN/IEC 60079-31
EC Type-Examination Certificate INERIS 13 ATEX 0022X
PROTECTION DEGREE IP66
AMBIENT TEMPERATURE -60°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES IECEx: IECEx INE 13_0070X
NEC 505: UL 20141204-E302348 – Type rating NEMA 1, 12, 4 and 4X

Bartec Feam EJB-UL INX Stainless Steel Enclosures Datasheet
