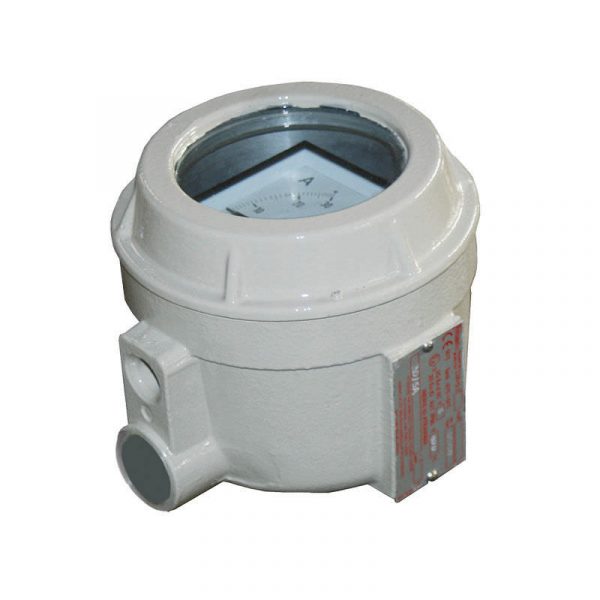

Bartec Feam EMH9 Instrument Housing

POA

Ex d IIC Zone 1/2-21/22/ IECEx / EAC / RMRS

Cable Systems provide an in-house Design, Assembly & Certification service for this item.




Please enter a quantity

Share this product:

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)

Classification: Group II – Category 2G 2D

Mechanical characteristics

Body – marine grade copper free aluminum

Cover – marine grade copper free aluminum

Round window – transparent tempered glass

Gasket – NBR O-Ring sealing

On Request Accessories :

  • External epoxy painting with colour on request
  • Internal anti-condensate painting
  • AISI 316L stainless steel drain breather valve
Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTIONII 2 G Ex d IIC T6 Gb
II 2 D Ex tb IIIC T85°C Db
RULES OF COMPLIANCEEN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-31
EC Type-Examination CertificateINERIS 02 ATEX 0069X
AMBIENT TEMPERATURE-40°C to +60°C
PROTECTION DEGREEIP66
OTHER AVAILABLE CERTIFICATESIECEx: IECEx INE 14.0014X
EAC: TC RU C-IT.ГБ08.В.01499 (-60°C ÷ +60°C)
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03518.315

Bartec Feam EMH9 Instrument Housing Datasheet
