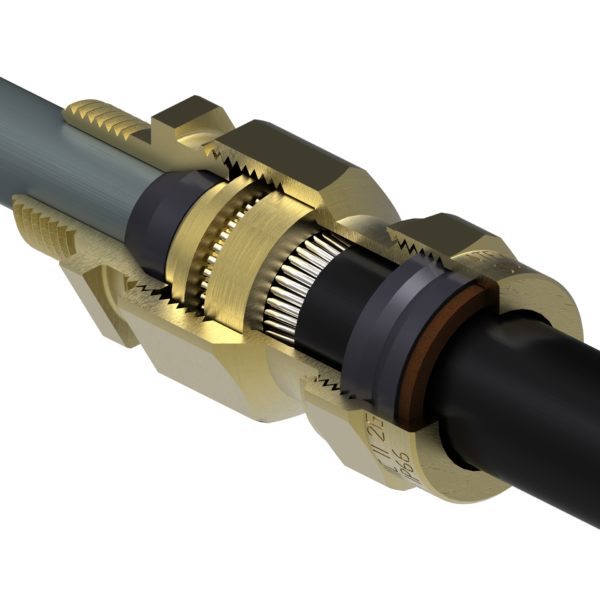

BICC Prysmian Bicon E1WF (KCA472) Cable Gland Kit

Prysmian BICON E1WF Cable Gland (472 Series) is a brass indoor and outdoor cable gland for use in hazardous locations. Suitable for use with all steel wire armoured cables.

Kit comprises: BW gland, brass earth tag, zinc plated steel locknut and shroud

Clear

Share this product:

Prysmian BICON E1WF Cable Gland (472 Series) is a brass indoor and outdoor cable gland for use in hazardous locations. Suitable for use with all steel wire armoured cables.

Prysmian E1WF KCA472 Features

  • Brass indoor and outdoor cable gland for use in hazardous areas.
  • Suitable for circular, galvanized steel wire armour cables with extruded polymeric bedding and oversheath.
  • Achieves IP66 seal onto cable and to enclosure with suitable sealing washer or thread sealant.
  • Three part armour lock provides mechanical cable retention and electrical continuity.
  • Inner PCP seal grips cable bedding and provides additional ingress protection.
  • Suitable for most climatic conditions – weatherproof and waterproof.
  • Standard and Nickel plated versions available.
  • Full installation instructions supplied.

For more information on Prysmian BICON E1WF Cable Gland Kit (KCA472 Series), please consult Datasheet.

Prysmian Bicon Cable Gland Reference Cable Gland Size Cable Dimensions (mm) KA472 Cable Gland Dimensions (mm)
Under Armour Ø (A) Overall Ø (B) Armour Wire Ø Pack Quantity Entry Thread (D) Thread Length (E) Protrusion Length (F) Hexagon
Standard Nickel Plated Min Max Min Max A/F (G) A/C (H)
KA472-51 KA472-51V 16 3.8 8.7 8.0 13.2 0.9 2 M16×1.5 15 41 23.4 26.7
KA472-71 KA472-71V 20SS 3.8 8.7 8.0 13.2 0.9 2 M20×1.5 15 41 23.4 26.7
KA472-52 KA472-52V 20S 8.0 11.8 8.0 15.8 0.9 /1.25 2 M20×1.5 15 43 25.7 29.2
KA472–53 KA472–53V 20 11.8 14.2 11.7 20.8 0.9 /1.25 2 M20×1.5 15 43 30.5 34.0
KA472–55 KA472–55V 25 14.0 20.1 17.0 27.2 1.25 / 1.6 2 M25×1.5 15 48 37.6 42.2
KA472–56 KA472–56V 32 19.7 26.6 23.5 33.5 1.6 / 2.0 1 M32×1.5 15 53 47.2 53.6
KA472–57 KA472–57V 40 26.6 32.4 29.0 39.9 1.6 / 2.0 1 M40×1.5 15 56 56.4 61.5
KA472-58 KA472-58V 50S 32.4 38.4 38.0 46.2 2.0 / 2.5 1 M50×1.5 15 61 60.0 66.0
KA472–59 KA472–59V 50 38.4 44.3 39.5 52.6 2.0 / 2.5 1 M50×1.5 15 61 70.1 77.2
KA472–60 KA472-60V 63S 44.3 50.3 50.0 58.9 2.5 1 M63×1.5 15 64 75.0 83.0
KA472–61 KA472–61V 63 50.3 56.2 51.3 65.3 2.5 1 M63×1.5 15 64 80.0 87.4
KA472–62 KA472–62V 75S 56.2 62.2 62.0 71.6 2.5 1 M75x1.5 15 73 90.2 99.1
KA472–63 KA472–63V 75 62.2 68.1 62.5 78.0 2.5 1 M75x1.5 15 73 98.8 109.2
KA472–64 KA472–64V 85 68.0 74.0 68.0 88.0 3.15 1 M85x1.5 20 102 115.1 126.0
