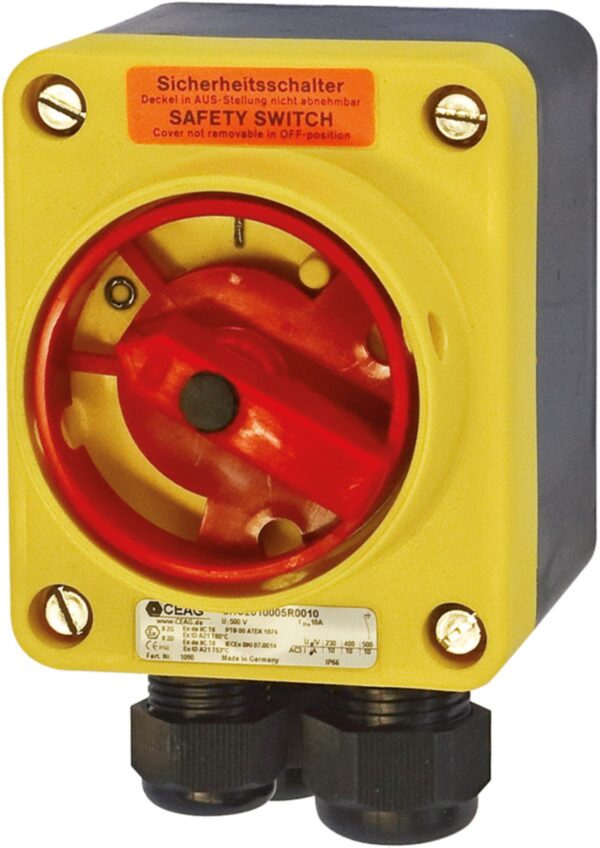

CEAG 10A 3-pole Emergency Stop
1 / 1
Home › Hazardous Area Products › Power & Control › Safety Switches & Isolators › CEAG GHG2610005R9036 EMERGENCY STOP

CEAG GHG2610005R9036 EMERGENCY STOP

CEAG 10A 3-pole EMERGENCY STOP, 2 x M20 plugged entries, brass earth continuity plate

  • 10A 3-pole Emergency Stop
  • Auxiliary contact: 1NO
  • 2 x M20 cable entries plugged, via brass earth continuity plate
Product Code: GHG2610005R9036

£477.02 (excl. VAT)

Availability: 4 in stock (Available for next day delivery)

Share this product:

CEAG GHG2610005R9036

10A 3-pole Emergency Stop

Auxiliary contact: 1NO

2 x M20 cable entries plugged, via brass earth continuity plate

CEAG GHG26 Explosion Protected Disconnect Switches

CEAG GHG26 disconnect switches from Eaton’s Crouse-Hinds Division are used to control motor, lighting and other circuits, and prevent arcing internal to the enclosed switch from causing ignition of a specific hazardous atmosphere. GHG26 switches are designed for industrial areas such as chemical plants, oil and gas refineries, paint and varnish manufacturing plants, gasoline bulk loading terminals and finishing areas where sturdy, durable enclosures are required.



Design features

  • Explosion protected factory sealed motor circuit switches
  • Innovative break line in cover allows full wiring access, making installation quick and easy
  • High impact enclosure is designed for excellent corrosion resistance and will not warp from hot or cold water
  • Tongue-in-groove seal guarantees IP66 rating and eliminates possibility of accidental opening or leakage
  • Lockable handle meets OSHA lockout/tagout requirements
  • Moulded-in-place mounting feet provide a water channel between wall and enclosure
  • Large rotary handle provides easy gripping with gloved hands
  • Captive cover screws prevent water exposure and possible corrosion

Standard materials

  • Enclosure – 10A: impact-resistant thermoplastic; 20A-180A – fiberglass-reinforced polyester
  • Enclosure gasket – silicone
  • Handle – impact-resistant thermoplastic
  • Cover screws – stainless steel
  • Conduit entries – zinc Myers hubs



Ex-safety switches 10 A
Marking accd. to 2014/34/EU II 2 G Ex eb db IIC T6 Gb / D II 2 D Ex tb IIIC T80°C Db
EC-Type Examination Certificate BVS 16 ATEX E 079
IECEx Certificate of Conformity IECEx BVS 16.0045
Marking accd. to IECEx Ex eb db IIC T6 Gb / Ex tb IIIC T80°C Db
Permissible ambient temperature –20 °C up to +40 °C1)
Rated voltage up to max. 500 V
Rated current max. 10 A
Frequency 50/60 Hz
Rated making-/ breaking capacity AC-3
accd. EN 60947-3		 Ue 230 V / Ie 10 A
Ue 400 V / Ie 10 A
Ue 500 V / Ie 10 A
Switch-disconnector for maintenance accd. to IEC 62262-1 Class 1
Back-up fuse up to 400 V AC: 20 A gG
up to 500 V AC: 16 A gG
Connecting terminals      main contact

auxiliary-/Signal contact

 2 x 1.5 – 2.5 mm2

2 x 0.5 – 2.5 mm2 (option)
Degree of protection accd. to EN 60529 IP 66
Protection class I
Cable glands/enclosure drilling M20 cable gland see ordering details
M25 cable gland see ordering details
Weight 0.55 kg
Enclosure material impact resistant polyamide
Enclosure colour black
Auxiliary contact (option) 1 x NO making – lagging; breaking – leading
Padlocking facility can be locked in OFF position with 3 commercially available padlocks (Ø max. 6 mm)
1) Other ambient temperatures on request

CEAG 10A Emergency Stop Datasheet
