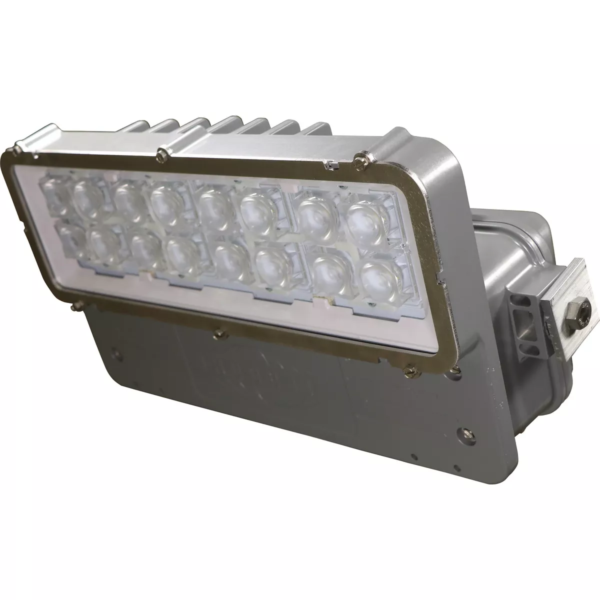

Chalmit Arran X Floodlight

High Lumens LED Floodlight for Zone 2 & 21

Clear

Share this product:
The Arran X is a new, revolutionary, energy efficient floodlight designed to withstand the most hazardous environments, without sacrificing light quality, durability, or safety. With a robust clamshell design, including a captive swing barrel latch, that offers complete and unimpeded access to the wiring chamber, which allows for a quick and easy installation.
  • Crisp White Light for Excellent Colour Rendering – Chromaticity 500 K
  • Easy access clamshell gear box design to allow quick access to the wiring chamber
  • Energy Savings – High lumens per watt 14L 120 lm/w for example
Std. Cat No.Delivered OutputPower ConsumptionT classT°C (Dust)Ambient °CWeight
ARXC/07L/LE7407 lm63WT5
T4
T3
160-50 to +40
-50 to +55
-50 to +65
11.3kg
ARXC/10L/LE10264 lm91WT5
T4
T3
160-50 to +40
-50 to +55
-50 to +65
11.3kg
ARXC/14L/LE14133 lm118WT5
T4
T3
160-50 to +40
-50 to +55
-50 to +65
11.3kg
ARXC/20L/LE18954 lm178WT4
T3
160-50 to +40
-50 to +55
11.3kg
ARXC/30L/LE28423 lm269WT4
T3
160-50 to +40
-50 to +55
11.3kg
ARXC/07L/LE/EM7407 lm63WT5
T4
160-20 to +40
-20 to +50
12.03kg
ARXC/14L/LE/EM14133 lm118WT5
T4
160-20 to +40
-20 to +50
12.03kg

Standard fitting supplied without optics with a wide beam distribution
ARXC/07L/LE/EM 1000 lumens 90 minute emergency duration
ARXC/14L/LE/EM 1000 lumens 90 minute emergency duration
Glass lens as standard

Standard Specification
Arran X Ex ec LED Floodlight
Type of ProtectionEx ec (Increased Safety) Ex tb (Dust Protected Enclosure)
ATEX ClassificationGroup II Category 3 G Group II Category 2 D
Area ClassificationZone 2 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN60079-14
CertificateType Examination Certificate Presafe 19 ATEX 32747X
EU Type Examination Certificate Presafe 19 ATEX 33512X IECEx Certificate of Conformity IECEx QPS 19.0031X
CodingEx ec IIC T5/T4 Gc Ex tb IIIC T165°C Db, IP66 Refer to table for T Rating and Ambient
EnclosureMarine grade Copper-Free Aluminium body with standard glass diffuser. Epoxy powder finish (Grey)
GeartrayAluminium
Entry2 x M20 cable entries
Termination3 core 6mm2 max. conductor with looping
InstallationStirrup mounting bracket
Control GearElectronic Driver
Optical DistributionWide beam
Colour Temperature (CCT)5000K (Cool White)
Colour Rendering Index (Ra)>70
MaintenanceEasy Install with clamshell splice box for unimpeded wiring access. Slotted screws
LED Lifetime @ 60°C AmbientL70 > 96800hrs
System Life @ Ambient100,000hrs @ 25°C; [excluding battery]
BatteryLithium Iron Phosphate
Emergency Duration1000 lumens for 90 minutes or 500 lumens for 3 hours
Impact ProtectionIK10
Ingress ProtectionIP66
Surge Protection6kV & 4kV for 30L
Electrical Supply120-277V AC 50/60Hz
127-250V DC
