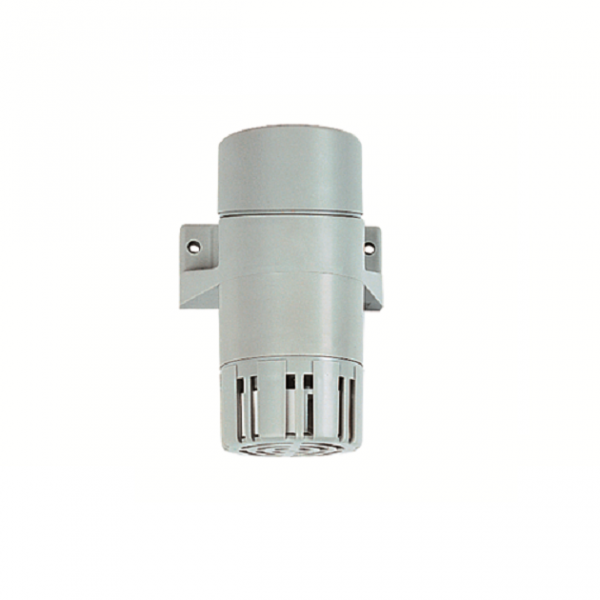

FHF KS Weatherproof Motor Siren

Compact alarm, warning or signalling device.

Clear

Share this product:

Overview

The small and light siren is used as alarm, warning or signalling device. Due to the high volume and penetrating wail of the
siren, the signal is also audible in noisy surroundings.

Design
The plastic housing is made of grey, impact-resistant thermoplastic (ABS). A self-sealing grommet M16 is provided
as cable gland for cable diameters of 6 to 10.5 mm.

The special arrangement of the mounting bracket means cable entry is possible from both concealed and surface wiring.

  • Penetrating sound
  • Continuous operation with 24 VDC, short-time operation 30 min. with 230 VAC
  • Simple installation
  • Protection degree IP 44
General
Area classificationWeatherproof
Operating temperature-20°C to +50°C
Ingress protection IP44
MaterialThermoplastic
Entries1 x M16
Weight0.45kg
Voltage24Vdc, 230Vac
Sound outputMax: 100dB, 1m (±3dB)
