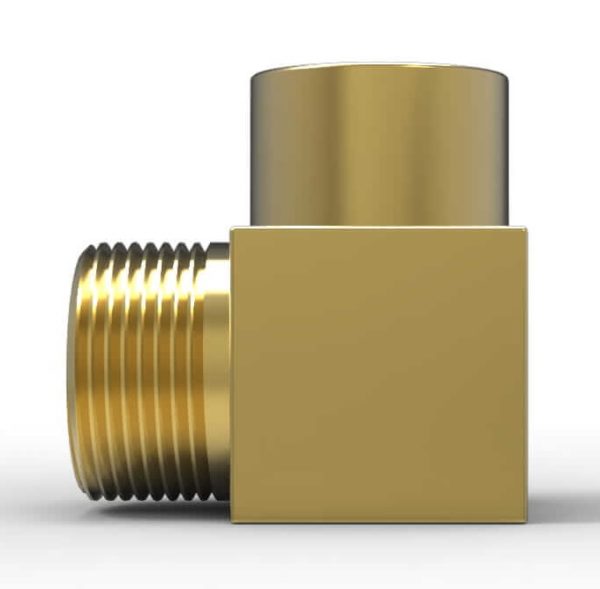

Hawke 494 (M to F) 90° Fixed Elbow

Flameproof Exd / Increased Safety Exe / Dual Certified ATEX – IECEx

(M to F) 90° Fixed Elbow

Clear

Share this product:

Flameproof Exd / Increased Safety Exe / Dual Certified ATEX – IECEx (M to F) 90° Fixed Elbow

  • M20 to M75 as standard.
  • Other parallel male thread options available on request, including BSPP, PG, ET and NPSM.
  • NPT female threads can also be supplied in sizes ranging from ½” to 3″.

The 494 is manufactured in Brass, Nickel Plated Brass, Steel, Nickel Plated Steel and Stainless Steel.

General
Application Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and
mining applications
Ingress Protection IP66
Material Brass, Nickel Plated Brass, Steel, Nickel Plated Steel and Stainless Steel.
Series Adaptors
Certifications and Compliance
Certified Listed
  • ATEX
  • IECEx
  • InMetro
  • EAC TC RU
Hazardous Rating(s)
  • Flameproof Exd IIC Gb
  • Increased Safety Exe IIC Gb
  • Dust Extb IIIC Db Ex II 2GD
Industry Standard(s)
  • IEC/EN 60079-0
  • IEC/EN 60079-1
  • IEC/EN 60079-7
  • IEC/EN 60079-31



Hawke 494 (M to F) 90° Fixed Elbow Datasheet
