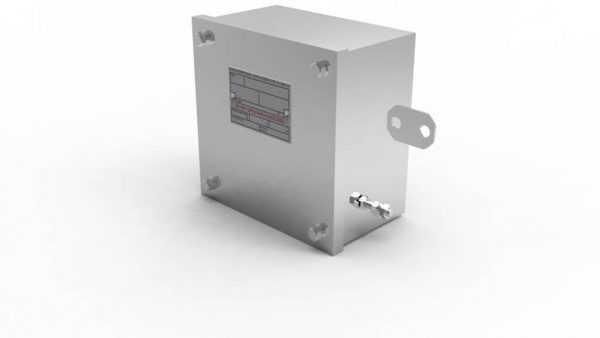

Hawke EJB Series Enclosures


Cable Systems provide an in-house Design, Assembly & Certification service for this item.


Clear

Share this product:

316 L Stainless Steel. Safer manual handling of enclosure and gland plates.

  • Enclosure Box size: 120 mm X 120 mm.
  • Softer Finished Rounded Edges.
  • Robust Stainless Steel Construction.
  • Extensive Range of Enclosure Sizes Available.
  • Internal/External Earth Stud Fitted.
  • Electropolished Surface Finish.
  • Rigid Slotted External Mounting Feet.
  • Superior One Piece Silicone Sponge Gaskets.
  • Stainless Steel Lid Fixing Screws with Nylon Retaining Washers

Durable with excellent UV stability and chemical resistance. – EMC mesh option.



General
ApplicationIncreased Safety Ex II 2 GD
Exe IIC Gb
Extb IIIC Db
Cover TypeBolted
Ingress Protection
  • IP66
  • DTS01
Material316 L Stainless Steel
Operating Temperature Range Celsius-40°C to +80°C
SeriesEJB
Certifications and Compliance
ATEX File NumberBaseefa08ATEX0208X; Baseefa08ATEX0207U
Certified Listed
  • ATEX
    IEC
Compliance
  • Exe
    Extb
Hazardous Rating(s)
  • Zone 1
  • Zone 2
  • Zone 21
  • Zone 22
IECEx File Number
  • IECEx BAS 08.0065X; IECEx BAS 08.0064U
Industry Standard(s)IEC/EN 60079-0
IEC/EN 60079-7
IEC/EN 61241-0
IEC/EN 61241-1

Hawke EJB Series Enclosures Datasheet
