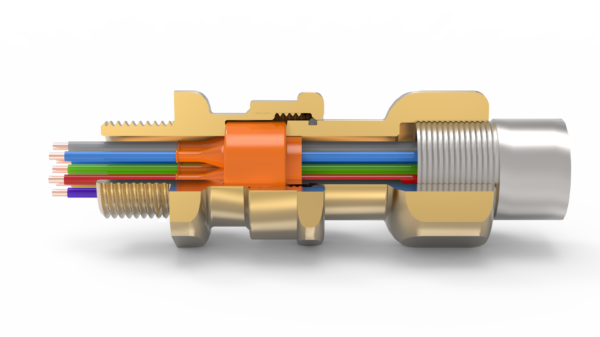

Hawke SB474 Cable Gland

Instant Barrier Cable Gland for conduit. ATEX/IECEx Group II Exd/Exe/Ext approved for hazardous areas.

Clear

Share this product:

The SB474 dual certified Exe/Exd gland offers an instant barrier solution where individual holes are punched through a silicone seal. You then pass through your individual insulated cores and compress to meet all of the requirement of a traditional barrier gland solution. This results in unparalleled speed of installation, inspection and flexibility, with no need for compounds or resin to achieve the Exd barrier seal, no curing time and instant gland completion.

The Hawke SB474 is a Group II certified instant barrier conduit stopper box, with a female running coupler, suitable for installation in Zone 1/21 and Zone 2/22 hazardous areas. Dual Certified ATEX/IECEx (along with many more) for use in Increased Safety (Exe), Flameproof (Exd), Restricted Breathing (ExnR) and Dust (Ext) protection concepts. The gland provides an instant compression barrier around cable conductors (no waiting for compount to cure!). For use with conductors, non-armoured elastomer and plastic insulated cables installed in conduit.
Metallic body construction

  • Elastomeric Exd flameproof compression seal around cable conductors – No waiting for compound to cure!
  • No special installation or punch tools required
  • Female threaded running coupler for cable gland or conduit entry
  • Available with metric or NPT entry and female threadforms
General
Application Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22
Ingress Protection
  • IP66, IP67 and IP68 (30 metres for 7 days, special instructions apply) to IEC/EN 60529
  • NEMA 4X
  • Deluge Protection to DTS01
Operating Temperature -60°C to +100 °C
Material Manufactured in Brass, Nickel Plated Brass or 316L Stainless Steel
Series Cable Glands for Group II Hazardous Areas
Certifications and Compliance
ATEX File Number Ratings
Certification
  • HAWKEPSB474OM20M20IEx14.0272XCML21UKEX1161X-60ƒC+100ƒCIP66/67
  • Ex II2GDExdbebIICGbExtbIIICDbCML19ATEX1167XIECExCML19.0045X
  • Ex NoEAÉ—CRUC-GB.HA91.B.00264/21OL70NAU (year Of Manufacture)
Hazardous Rating(s)
  • Ex II 2GD Ex db IIC Gb
  • Ex eb IIC Gb
  • Ex nR IIC Gc
  • Ex tb IIIC Db
Industry Standard(s) IEC/EN 60079-0, 1, 7, 15, 31
Ratings IK10 to IEC 62262

SB 474 Cable Gland Datasheet
