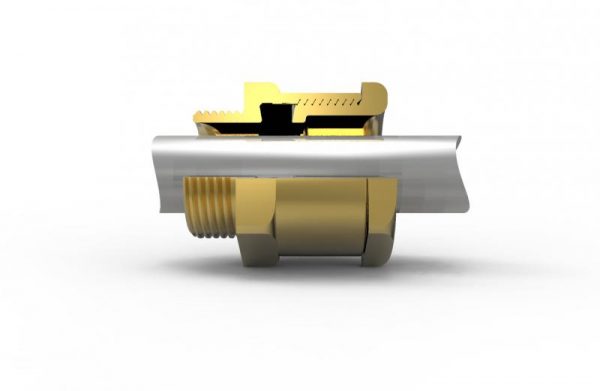

Hawke ToughMate A2 Cable Gland

POA

Please enter a quantity

Share this product:

A robust and simple design for applications using non armoured cable in a heavy industrial environment which is exposed to dust or extreme weather conditions. All cable glands can be supplied with a shroud, lock nut, serrated washer and an earth tag.

The TM A2 is packed with a variety of features designed to suit some of the worlds harshest conditions. Take a closer look:

  • Provides a cable retention seal onto the cables outer sheath
  • Simple robust single compression cable gland
  • Ease of assembly
  • High quality materials with exceptional anti corrosion properties
  • UV stable seal
  • Tested to the latest industrial standards
  • Excellent sealing range
  • Provides cable retention seal onto the cables Outer Sheath
  • Low smoke and fume, zero halogen seals and shroud available
General
Construction and Test Standards:
  • BS EN 62444:2013
  • BS6121: Part 1 type A2
Ingress Protection
  • IP66 IEC/EN 60529
MaterialBrass (standard), Nickel Plated Brass, 316L Stainless Steel with Neoprene Seal
Operating TemperatureRange: -60°C to +100°C
Clamping ArrangementSingle compression seal
Cable TypeNon armoured
Kit InformationStand kit also available with a low smoke option. Use STD for Standard kit or LSF for low smoke
Note: Displacement or Compression seals do not prevent cold flow. IP seal required to maintain IP66.

ToughMate A2 Cable Gland Datasheet
