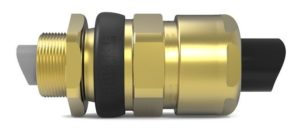

Hawke ToughMate CW Cable Gland

POA

Please enter a quantity

Share this product:

A robust and simple design for applications using SWA or AWA cable in a heavy industrial environment which is exposed to dust or extreme weather conditions. All cable glands can be supplied with a shroud, lock nut, serrated washer and an earth tag.

The product of 60 years experience in Cable Gland design and manufacture, the TM CW boasts the following features:

  • Simple robust 4 piece single compression cable gland
  • Simple mechanical clamping arrangement for all SWA and AWA cable
  • Ease of assembly
  • High quality materials with exceptional anti corrosion properties
  • UV stable seal
  • Tested to the latest industrial standards
  • Excellent sealing range
  • EMC tested
  • All hexagon parts are the same size
  • Provides cable retention seal onto the cables Outer Sheath
General
Construction and Test Standards:
  • BS EN 62444:2013
  • BS6121: Part 1 type CW
Ingress Protection
  • IP66 IEC/EN 60529
MaterialBrass (standard), Nickel Plated Brass, 316L Stainless Steel with Neoprene Seal
Operating TemperatureRange: -60°C to +100°C
Clamping ArrangementTwo part armour clamp, single compression seal
EarthElectrical continuity using the armour wire termination (SWA, AWA)
Cable Type HICWSingle Wire Armour SWA and AWA
Cable Type H1CXBraid Wire Armour, Pliable Wire Armour (PWA), Steel Tape Armour (STA)
Kit InformationStand kit also available with a low smoke option. Use STD for Standard kit or LSF for low smoke

ToughMate CW Cable Gland Datasheet
