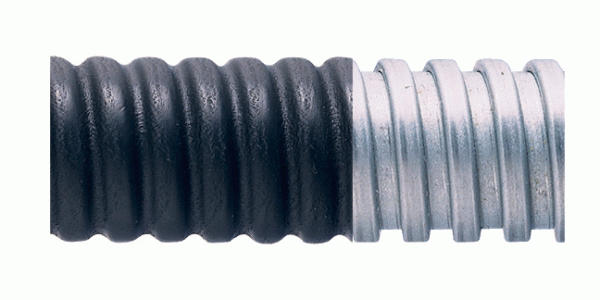

Kopex KEBF Flexible Conduit

PVC Covered – Liquid Resistant Conduit, Galvanised Steel Core with PVC Jacket.

Clear

Share this product:

Type KEBF

PVC Covered – Liquid Resistant Conduit

  • Galvanised Steel Core with PVC Jacket
  • Flame dies in less than 30 seconds after ignition source is removed
  • Temperature range – Static applications: -25ºC to +70ºC
    Temperature range – Dynamic applications: -5ºC to +90ºC
  • Up to IP65 rating (with appropriate fitting)
  • Very high flexibility and high fatigue life

Typical applications

  • General OEM Machinery
  • Lighting / Cable Track
  • Under-floor wiring, access flooring

Approvals

  • BSI Kitemark KM-90009
  • CE Mark to the Low Voltage Directive
Part No.Nominal Conduit SizeUS
Conduit Size
Inside DiameterOutside DiameterCoil Length
KEBF01*10mm1/4”7.0mm10.3mm10/30m
KEBF02*12mm5/16”10.0mm13.8mm10/30m
KEBF03*16mm3/8”12.9mm17.1mm10/30m
KEBF04*20mm1/2”17.0mm21.2mm10/30/50m
KEBF05*25mm3/4”21.1mm25.7mm10/30/50m
KEBF06*32mm1”28.4mm33.0mm10/20m
KEBF07*40mm1 1/4”36.4mm41.1mm10/20m
KEBF07*40mm1 1/2”36.4mm54.9mm10/20m
KEB08*50mm2”48.2mm64.5mm10/20m
KEBF09*63mm2”57.5mm64.5mm10m
