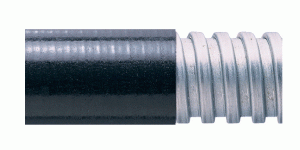

Kopex KEBT Flexible Conduit

Galvanised Steel Core – Low Fire Hazard Jacket.

Clear

Share this product:

Type KEBT

Galvanised steel core – Low Fire Hazard jacket

  • Flame dies in less than 30 seconds after ignition source is removed
  • Temperature range – Static applications: -20ºC to +90ºC
    Temperature range – Dynamic applications: -5ºC to +105ºC
  • Up to IP65 rating (with appropriate fitting)
  • Medium flexibility and fatigue life

Typical applications

  • General OEM Machinery
  • Lighting / Cable Track
  • Under-floor wiring, access flooring

Approvals

  • BSI Kitemark KM-90009
  • CE Mark to the Low Voltage Directive
  • EN45545-2 HL3
  • NFF16-101 I1 F1
  • LUL 1-085
  • BS6853 Class 1A
Part No.Nominal Conduit SizeUS
Conduit Size
Outside DiameterInside DiameterCoil Length
KEBT01*10mm1/4”10.3mm7.0mm10/30m
KEBT02*12mm5/16”13.8mm10.0mm10/30m
KEBT03*16mm3/8”17.1mm12.9mm10/30m
KEBT04*20mm1/2”21.2mm17.0mm10/20m
KEBT05*25mm3/4”25.7mm21.1mm10/30m
KEBT06*32mm1”33.0mm28.4mm10/30m
KEBT07*40mm1 1/4”41.1mm36.4mm10/20m
KEBT09*50mm1 1/2”54.9mm48.2mm10/30m
KEBT09*63mm2”64.5mm57.5mm10/20m
KEBT10*75mm2 1/2”79.0mm70.0mm10/20m
