Overview
Raxton’s comprehensive range of Stopping Plugs are designed to close any unused entries in electrical equipment without revoking existing certification. Following the basic rules in line with good engineering practice Raxton Stopping Plugs should be inserted directly into the unused entry and not into a thread Reducer or thread Adaptor. Raxton Stopping Plugs are marked with the appropriate approval number and size. Tested to IP68.

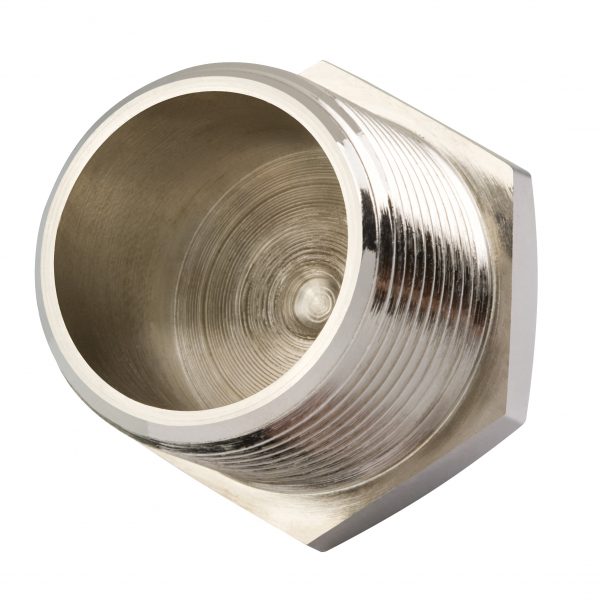

Type CY is a hollow version of the Hexagon Head Plug but still with Exd/Exe certification.
Certifications and compliances
Code of protection categories
ATEX: I M2 (not Type CY), Ex d IMb, Ex e I Mb, or II GD, Ex d IIC Gb,
Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex d I/IIC Mb/Gb, Ex e I/IIC Mb/Gb, Ex tb IIIC Db,
(Group I not for Type CY)
CSA: Ex d IIC Class I, Zone 1, AEx d IIC (brass and stainless only)
(not CY) (not NPT threads)
GOST: ExdeI/IICU, ExdeIICU, ExeIIU
INMETRO: Ex de I/IIC Mb/Gb, Ex tb IIIC IP66/67 (brass and stainless)
(not CY) Ex de IIC Gb, Ex tb IIIC IP66/67 (aluminium)
NEPSI: Ex d II C Gb, Ex e II C Gb, DIP A21 Ta IP6X
Compliance standards
ATEX / GOST: EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31
IECEx: IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31
CSA: CAN/CSA-E79-0, CAN/CSA-E79-1, UL 2279,
IEC 60079-0, IEC 60079-1 (not NPT threads for CY)
INMETRO: ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1,
ABNT NBR IEC 60079-7, ABNT NBR IEC 60079-31
NEPSI: GB 3836.1, GB 3836.2, GB 3836.3, GB 12476.1
Certificate details
ATEX: Sira 10ATEX1224X, ITS16ATEX101335X
IECEx: IECEx SIR 07.0009X, IECEx ITS16.0012X
CSA: CSA 200455-1003277
GOST: TC RUC-G B.ГБ06.B.00105
INMETRO: NCC 12.0764X
NEPSI: GYJ13.1311X
Temperature
The item is classified as a component and therefore metallic products are not
given an operating temperature range.
Ingress protection (IP):
Tested to IP66 / IP68.
